Tình trạng sản phẩm:


Product brand: Swiss Fuba HUBA

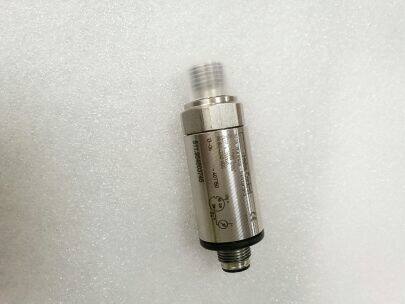

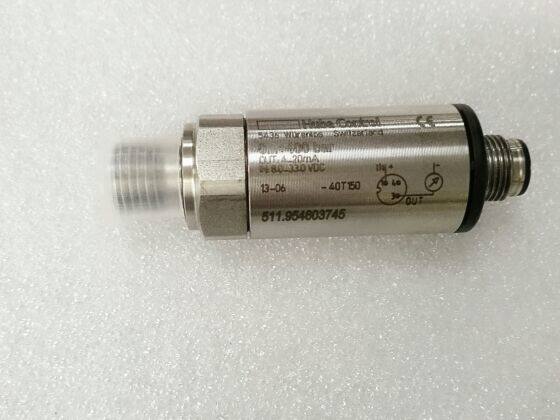

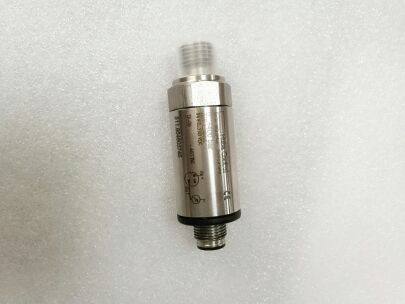

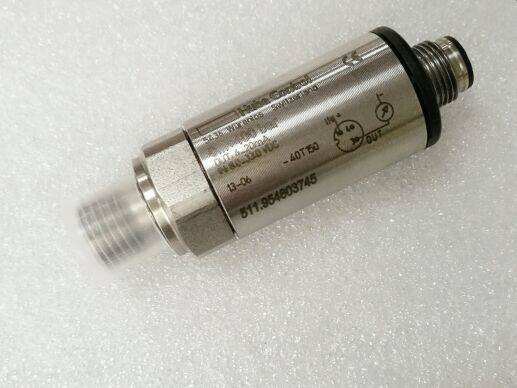

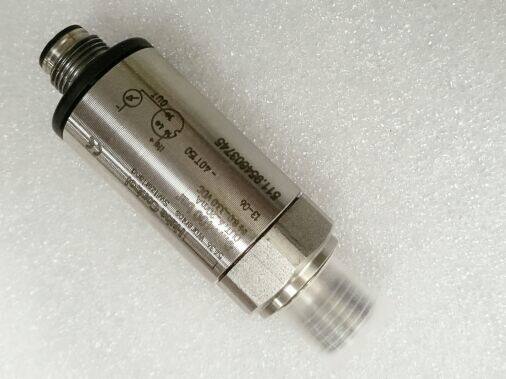

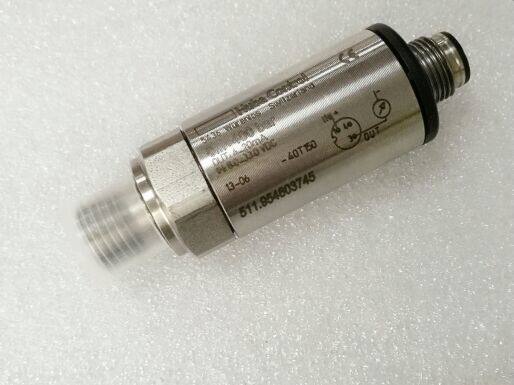

Product Name: Pressure Transmitter 511 Series

Range: -0.1~60MPa
Accuracy: ±0.3% FS
Supply voltage: 8-33VDC
Output signal: 0~10V, 4~20mA
Load capacity: Transmitter current type ≦500W; voltage type ≧100KW
Working temperature: -15~12 5 °C




Model specifications:
511.900003741 Pressure range: -1 to 0BAR, output signal: 4 to 20ma, pressure interface: external thread G1/4
511.911003741 Pressure range: 0 to 1BAR, output signal: 4 to 20ma, pressure interface: external thread G1/4
511.914003741 Pressure range: 0 to 2.5 BAR, output signal: 4 to 20 ma, pressure port: external thread G1/4
511.915003741 Pressure range: 0 to 4 BAR, output signal: 4 to 20 ma, pressure port: external thread G1/4
511.917003141 Pressure range : 0 to 6BAR, output signal: 4 to 20ma, pressure interface: external thread G1/4
511.930003741 Pressure range: 0 to 10BAR, output signal: 4 to 20ma,
pressure interface: external thread G1/4
511.930002741 Pressure range: 0 to 10BAR, output signal: 0 to 10V, pressure interface: external thread G1/4
511.930007141 Pressure range: 0 to 10 BAR, output signal: 0 to 10 V, pressure interface: external thread G1/4
511.931003741 Pressure range: 0 to 16 BAR, output signal: 4 to 20 ma pressure interface: external thread G1/4
511.931003141 Pressure range: 0 to 16 BAR, output signal: 4 to 20 ma pressure interface: external thread G1/4
511.931007141    Pressure range: 0 to 16 BAR, output signal: 0 to 10 V, pressure interface: external thread G1/4
511.932003741 Pressure range: 0 to 25 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4
511.932003141 Pressure range: 0 to 25 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4
511.933003742 Pressure range: 0 to 40 BAR, output signal: 4 to 20 ma, pressure port: external thread G1/4
511.940003742    Pressure range: 0 to 60 BAR, Output signal: 4 to 20 ma, Pressure port: External thread G1/4
511.941003742 Pressure range: 0 to 100 BAR, Output signal: 4 to 20 ma, Pressure port: External thread G1/4

511.942003742 Pressure range: 0 to 160 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4
511.943003745 Pressure range: 0 to 250 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4

511.943002742 Pressure range: 0 to 250 BAR, output signal: 0-10V, pressure interface: external thread G1/4
511.954603742 Pressure range: 0 to 400 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4
511.954602745 Pressure range: 0 to 400 BAR, output signal: 0-10V, pressure port: external thread G1/4
511.955603745 Pressure range: 0 to 600 BAR, output signal: 4 to 20 ma, pressure interface: external thread G1/4
