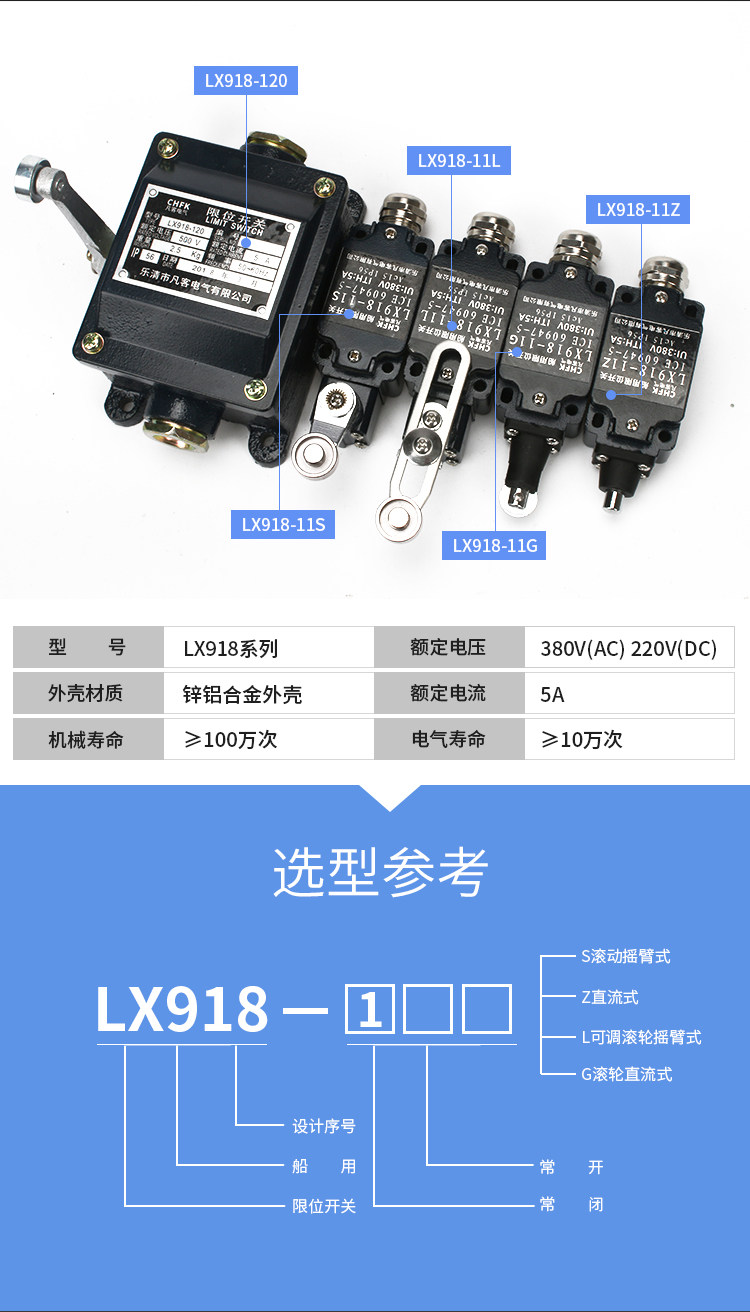

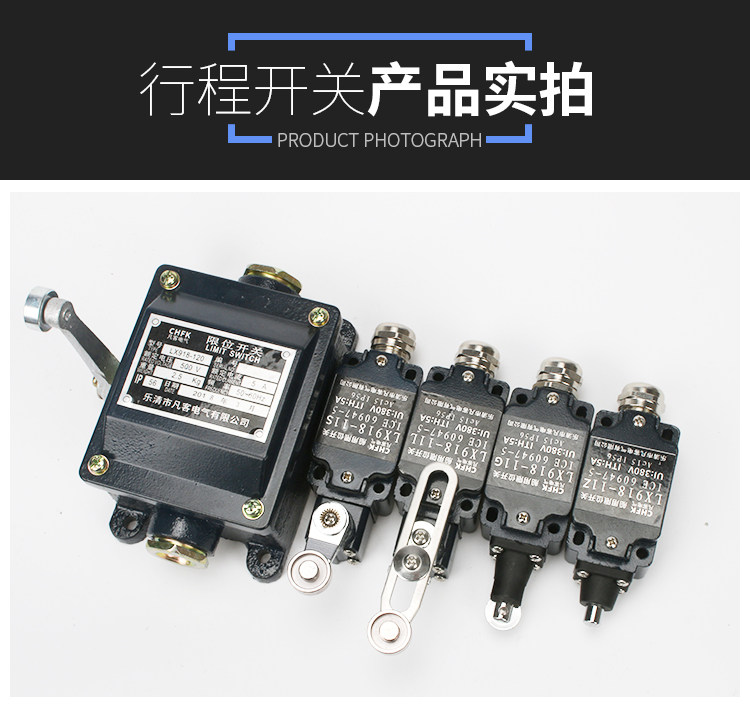

Công tắc hành trình, công tắc giới hạn LX918-11L,LX918-11Z,LX918-11G,LX918-11S,LX918-120

LX918 series limit switch is used in the circuit of AC 50 ~ 60HZ, voltage up to 500 and DC voltage up to 440V. It is used to limit the travel of various mechanisms. It can also directly 5.5KW three-phase squirrel cage asynchronous motor The two-phase fire break) limit switch.

2. Meet the standard:

  It meets the special requirements of IEC377-2 control switch, and has passed the inspection of China Classification Society, which meets the marine standards.

3. Structure:

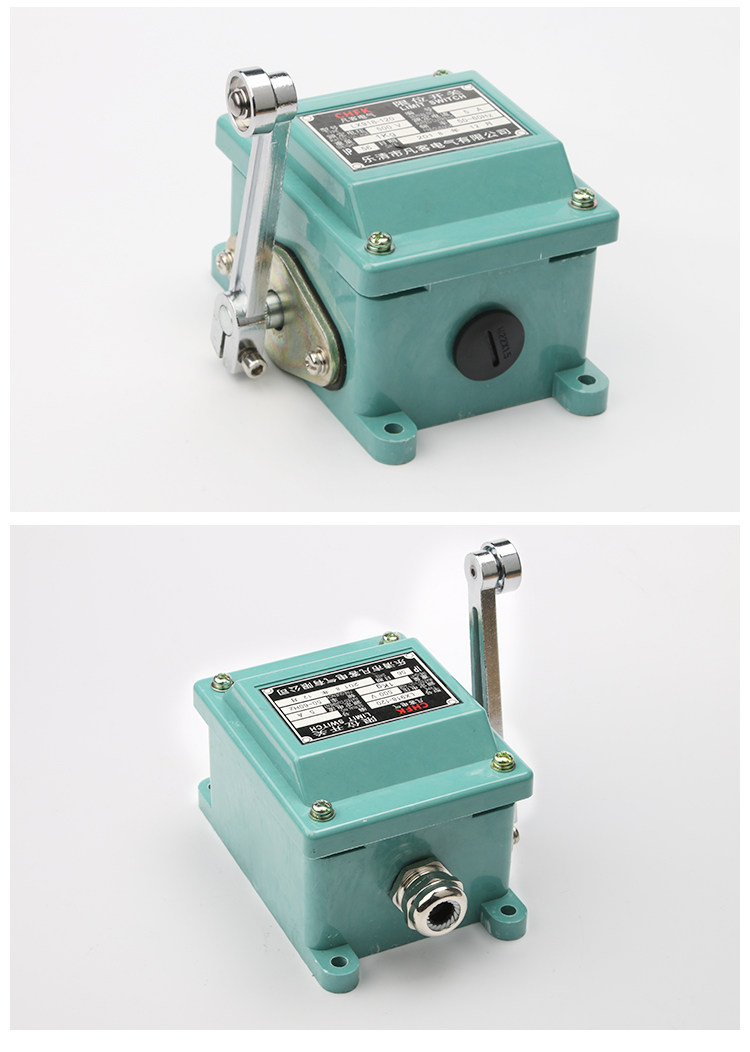

  The outer shell of the limit switch is made of copper alloy, and its outer shell has good mechanical strength and good corrosion resistance. In the marine ship environment, the performance of the material will not deteriorate. The shell type is protection type and the protection grade is IP56.

4. Main technical data:

  The limit switch has a conventional heating of 16A; the rated insulation voltage is 500V; the DC rated 5.5KW three-phase squirrel-cage asynchronous motor has a rated operating voltage of 440V and a rated operating current of 12A.
5. Notes on the use of limit switch:

  ① The dynamic and static contacts of the limit switch are not used as wearing parts. If the user is damaged due to overloading and other reasons, they need to be replaced and must be replaced with parts from the manufacturer.

  ②Using this product, you should read the manual and relevant materials carefully in order to select the model correctly and use it reasonably.

6. Installation and maintenance:

 ① Fix the limit switch in the proper position of the equipment with bolts, and tighten the screws and nuts of the installation equipment, and there should be measures to prevent it from loosening due to vibration to avoid affecting the operation.

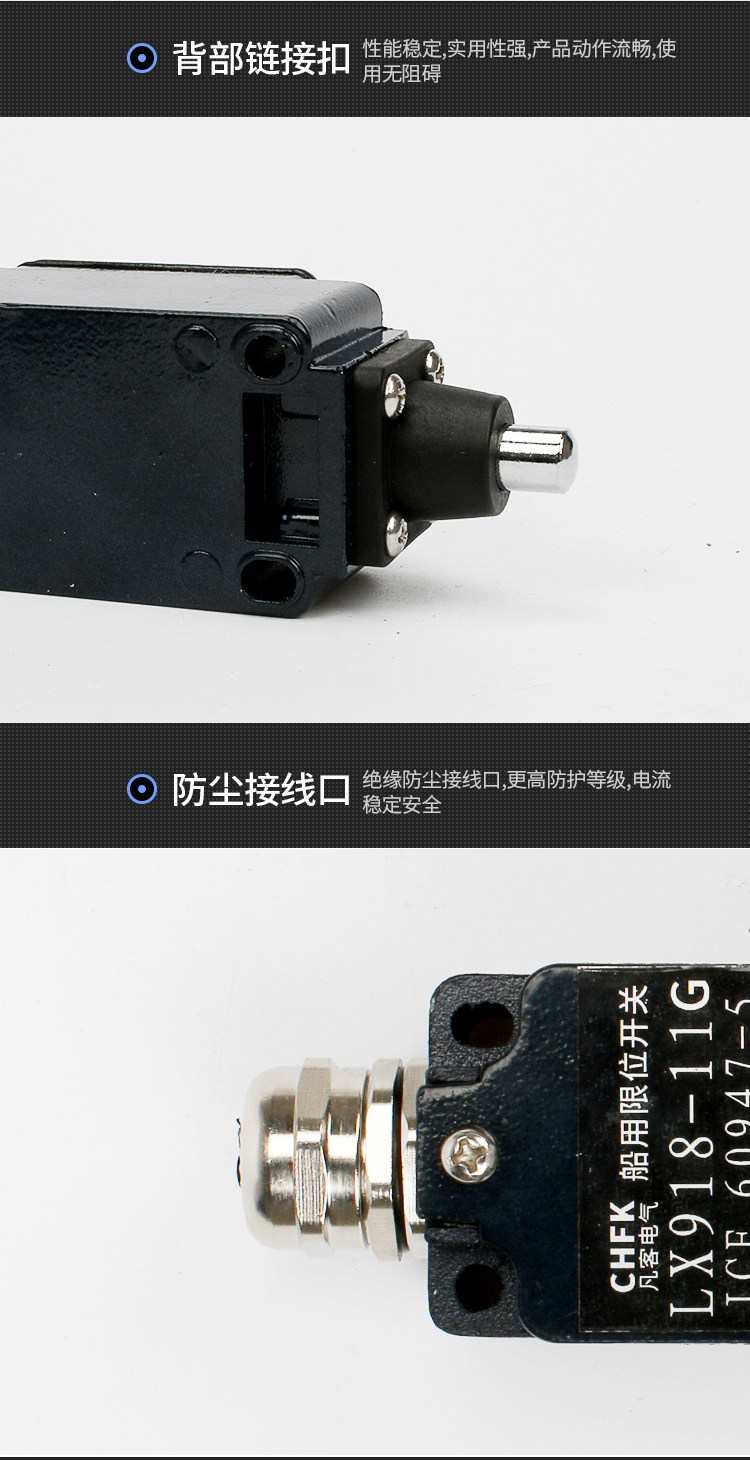

 ② Lead the wire through the outlet plug, close the case after wiring, tighten all screws, and check whether the action meets the requirements.
