Bộ điều khiển cân, hiển thị cân GM8804A6 two-speed with multi-material weighing display control instrument system stirring

GM8804A6 batching controller is a weighing control instrument specially developed for automatic batching scales.

The controller has the characteristics of moderate size, high precision, powerful function, simple and practical operation.

Features:

Moderate size, beautiful shape, convenient and practical

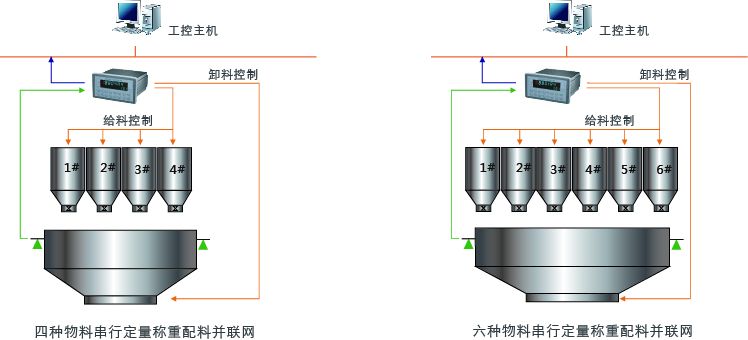

The batching process of six kinds of materials can be controlled and completed

20 -way digital input and output control (8 in/12 out), the position of the output port can be customized. Maximum user-friendliness

Switch value test function, convenient for debugging of batching scale

Fully automatic two-speed feeding control, with optional inching and small feeding function

Full panel digital calibration, can manually input millivolts to complete the calibration (no weight calibration function)

Forty formulas can be stored, which is convenient for ingredients of different formula products

Automatic drop correction function

Multiple digital filter function

Automatic zero tracking function

time / date function

Dual serial ports, external serial printer, computer or second display (this function must be equipped with SIO expansion board)

Functional Type Batching Control Installation Method Panel Installation Dimensions 134*245*96mm Working Power Supply AC95V~260VA/D Conversion Speed ​​120 Times/Sec Display Accuracy 1/30000 Display Form 2-segment 9-digit Fluorescent Tube Key Type All-Digital 16-Key Communication Interface Dual serial port RS232+RS485 main features High precision, high speed, anti-interference, anti-vibration, international power supply, CE+, EMC, front panel IP65
