Cảm biến đo độ rung vibration sensor SDJ-SG-2 SZ-6 ST-6 ST-2 ST-3 ST-4 ZHJ-2 VS-020 VS-2X VS-2

1. Introduction

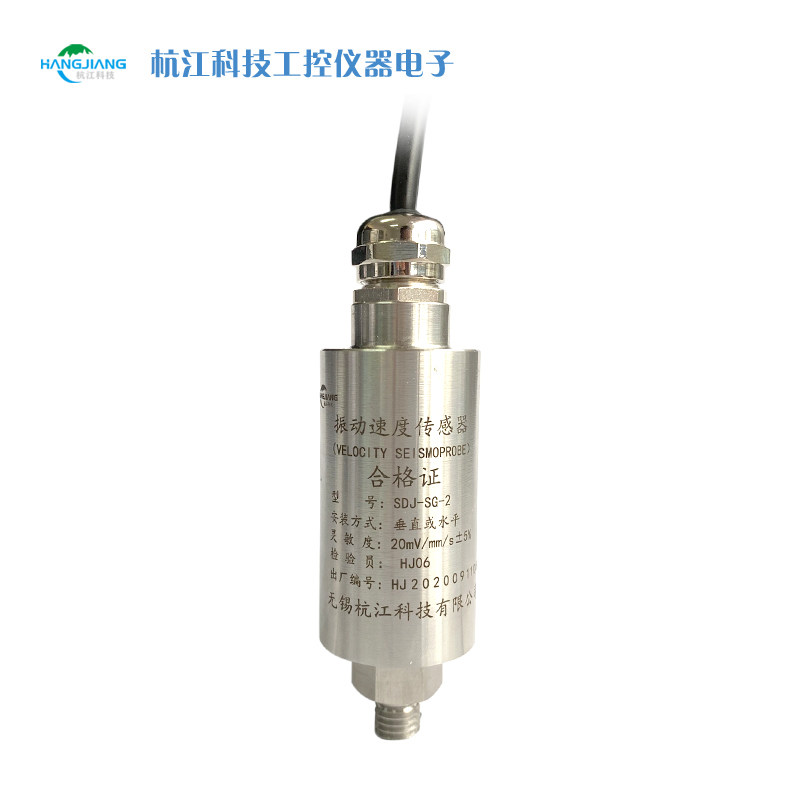

SDJ-SG-2 vibration speed sensor is mainly installed on the bearing caps of various rotating mechanical devices (such as turbines, compressors, fans and pumps, etc.). It is an electromagnetic . Therefore, it does not require a power supply during operation and is easy to install.

2. Technical Parameters

2.1 Sensitivity : 20 mv/ mm/ s,    28 mv/ mm/ s , 30 mv/ mm/ s, 50 mv/ mm/ s ( optional )

2.2 Frequency response : 10  ~  10 00 Hz

2.3 Natural frequency: 10 Hz (  10  ~  10 00 Hz )

2.4 Measurement error: 10-100HZ error 3%

          100 — 300HZ error 2%

          300-1000HZ error 5%

2.4 Measurable amplitude: ≤2mm (P — P)

2.5 Maximum acceleration: 10g

2.6 Measurement direction: Vertical and horizontal *

2.7 Operating environment:   Temperature   -40 ℃ ~ 10 0 ℃ ( 200 ℃ special customization *)   Relative humidity  ≤90%

2.8 Overall dimensions: φ 3 0 × 78 mm ( including socket)

2.9 Weight : about 300g
