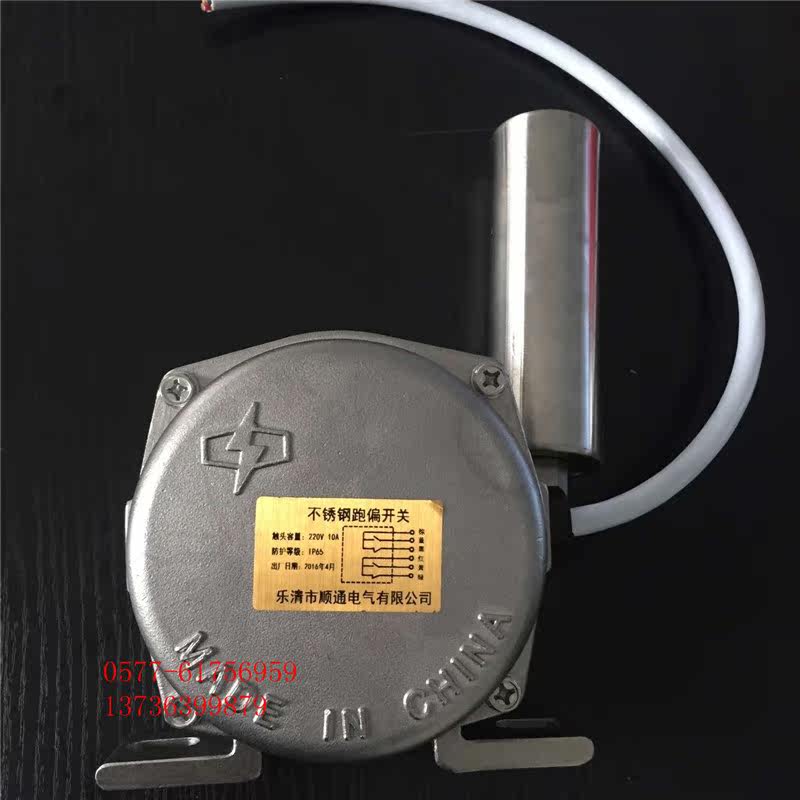

Công tắc báo lệch băng tải loại chống ăn mòn vật liệu thép ,belt deviation switch, FKPT1-12-30 10-45 20-35 FDK XLPP YHP
Two-stage deviation switch
The two-stage deviation switch is mainly used to detect the deviation of the belt of the conveyor to prevent malfunctions such as material overflow caused by the deviation of the tape. When the tape deviates, the edge of the tape drives the stick to rotate and squeezes the stick to tilt it. If the stick is tilted more than the first-level action angle, the switch will send a set of signals for warning, if the stick is tilted more than the second-level action angle, the switch will send another set of signals for stopping. After the belt conveyor resumes normal operation, the vertical stick is automatically reset.
The two-stage deviation switch is mainly used to detect the deviation of the belt of the conveyor to prevent malfunctions such as material overflow caused by the deviation of the tape. When the tape deviates, the edge of the tape drives the stick to rotate and squeezes the stick to tilt it. If the stick is tilted more than the first-level action angle, the switch will send a set of signals for warning, if the stick is tilted more than the second-level action angle, the switch will send another set of signals for stopping. After the belt conveyor resumes normal operation, the vertical stick is automatically reset.
Tình trạng sản phẩm:
working principle
When the running tape has a deviation phenomenon, the edge of the tape drives the vertical stick to rotate and squeeze to tilt it. If the vertical stick tilt angle is greater than the first-level action angle, the switch sends a group of switching signals, such as the vertical stick continues to tilt more than When the operating angle is at the same level, another set of switching signals is output. The two sets of switch signals can be used for alarm or shutdown, respectively. After the belt conveyor is reset to normal operation, the vertical stick is automatically reset.
Structural characteristics
The switch uses imported travel switches, with large contact capacity, sensitive action and long service life. It has good air tightness, and has the advantages of dustproof, shockproof, anticorrosive, etc. The protection grade of the casing is IP65, which can work in harsh environments for a long time.
Ambient temperature: -30 ℃ ~ + 50 ℃; relative temperature: no more than 85%
1) balance switch mounting bracket mounted on the frame, and then welded to the tape rack;
2) the vertical axis of the stick perpendicular sided tape, adhesive tape stick upright edge distance of 50mm-100mm;
3) is located upright stick tape 1/3 of the lower end;
4) At least one pair of deviation switches need to be installed for each 50m of tape
Two-stage deviation switch HFKPT1-12-30, HFKPT1-20-35, XLPP-12-30, XLPP-20-45, LLD1-S, JPK2-S, JPKJ-S, JSB-KPP-S, LLD1-Z , JPK2-Z, JPKJ-Z, JSB-KPP-Z, LLD2-1, LLD2-2, LLD2-3, HHTSD-1, LLD7, YHFPK, DFP, XCRT315, XCRT314, XCRT115, XLPP-J-12-30 , XLPP-J-20-45, XLPP-D-12-30, XLPP-D-20-45, DPK-12-30, DPK-20-35, DPK-10-45, SPS-2D, ROS-2D ,
Two-way rope switch LLP1-S, JLK3-S, LLP1-Z, JLK3-Z, LLP2-1, KLT2-1, HFKLT2-1, LLP2-2, KLT2-2, HFKLT2-2, LLP2-3, KLT2- 3.HFKLT2-3, LLP3-S, JLK2-S, JLK4-S, JLKJ-S, JSB-KLS-1, LLP3-Z, JLK2-Z, JLK4-Z, JLKJ-Z, JSB-KLS-2, LLP4-Z, FKLT2-Z, LLP4-Y, FKLT2-Y, LLP5-1, KLT2A-1, LLP6-1, LSF-1, LLP6-2, LSF-2, LLP6A-L, YHLS-L, LLP7- I, LLP7-2, LXA-01GKH-T1-A, LXA-01GKH-T2-A, LXA-02GKH-T1-F, LXA-02GKH-T2-F, XLLS-I, XLLS-II, XLLS-JI, XLLS-J-II, XLLS-FI, XLLS-F-II, XLLS-PI, XLLS-P-II, XLLS-DI, XLLS-D-II, HFKLT2-I, HFKLT2-II, KLT2-II, PXA- 34KK-A, DLS-I, DLS-II, DPLS-I, DPLS-II,
Two-way rope switch LLP1-S, JLK3-S, LLP1-Z, JLK3-Z, LLP2-1, KLT2-1, HFKLT2-1, LLP2-2, KLT2-2, HFKLT2-2, LLP2-3, KLT2- 3.HFKLT2-3, LLP3-S, JLK2-S, JLK4-S, JLKJ-S, JSB-KLS-1, LLP3-Z, JLK2-Z, JLK4-Z, JLKJ-Z, JSB-KLS-2, LLP4-Z, FKLT2-Z, LLP4-Y, FKLT2-Y, LLP5-1, KLT2A-1, LLP6-1, LSF-1, LLP6-2, LSF-2, LLP6A-L, YHLS-L, LLP7- I, LLP7-2, LXA-01GKH-T1-A, LXA-01GKH-T2-A, LXA-02GKH-T1-F, LXA-02GKH-T2-F, XLLS-I, XLLS-II, XLLS-JI, XLLS-J-II, XLLS-FI, XLLS-F-II, XLLS-PI, XLLS-P-II, XLLS-DI, XLLS-D-II, HFKLT2-I, HFKLT2-II, KLT2-II, PXA- 34KK-A, DLS-I, DLS-II, DPLS-I, DPLS-II,
When the running tape has a deviation phenomenon, the edge of the tape drives the vertical stick to rotate and squeeze to tilt it. If the vertical stick tilt angle is greater than the first-level action angle, the switch sends a group of switching signals, such as the vertical stick continues to tilt more than When the operating angle is at the same level, another set of switching signals is output. The two sets of switch signals can be used for alarm or shutdown, respectively. After the belt conveyor is reset to normal operation, the vertical stick is automatically reset.
Structural characteristics
The switch uses imported travel switches, with large contact capacity, sensitive action and long service life. It has good air tightness, and has the advantages of dustproof, shockproof, anticorrosive, etc. The protection grade of the casing is IP65, which can work in harsh environments for a long time.
Ambient temperature: -30 ℃ ~ + 50 ℃; relative temperature: no more than 85%
| model | Action angle | Extreme angle | Number of contacts | Contact rating | Protection class | Reset mode | reliability | weight (kg) | ||
| First level | Secondary | Normally open | Normally closed | |||||||
| HPK-12-30 | 12 ° | 30 ° | 70 ° | 2 | 2 | AC380V5A | IP65 | Automatic reset | ＞ 106 times | 3.5 |
| HPK-10-45 | 10 ° | 45 ° | 70 ° | |||||||
| HPK-20-35 | 20 ° | 35 ° | 70 ° | |||||||
1) balance switch mounting bracket mounted on the frame, and then welded to the tape rack;
2) the vertical axis of the stick perpendicular sided tape, adhesive tape stick upright edge distance of 50mm-100mm;
3) is located upright stick tape 1/3 of the lower end;
4) At least one pair of deviation switches need to be installed for each 50m of tape
Two-stage deviation switch HFKPT1-12-30, HFKPT1-20-35, XLPP-12-30, XLPP-20-45, LLD1-S, JPK2-S, JPKJ-S, JSB-KPP-S, LLD1-Z , JPK2-Z, JPKJ-Z, JSB-KPP-Z, LLD2-1, LLD2-2, LLD2-3, HHTSD-1, LLD7, YHFPK, DFP, XCRT315, XCRT314, XCRT115, XLPP-J-12-30 , XLPP-J-20-45, XLPP-D-12-30, XLPP-D-20-45, DPK-12-30, DPK-20-35, DPK-10-45, SPS-2D, ROS-2D ,
Two-way rope switch LLP1-S, JLK3-S, LLP1-Z, JLK3-Z, LLP2-1, KLT2-1, HFKLT2-1, LLP2-2, KLT2-2, HFKLT2-2, LLP2-3, KLT2- 3.HFKLT2-3, LLP3-S, JLK2-S, JLK4-S, JLKJ-S, JSB-KLS-1, LLP3-Z, JLK2-Z, JLK4-Z, JLKJ-Z, JSB-KLS-2, LLP4-Z, FKLT2-Z, LLP4-Y, FKLT2-Y, LLP5-1, KLT2A-1, LLP6-1, LSF-1, LLP6-2, LSF-2, LLP6A-L, YHLS-L, LLP7- I, LLP7-2, LXA-01GKH-T1-A, LXA-01GKH-T2-A, LXA-02GKH-T1-F, LXA-02GKH-T2-F, XLLS-I, XLLS-II, XLLS-JI, XLLS-J-II, XLLS-FI, XLLS-F-II, XLLS-PI, XLLS-P-II, XLLS-DI, XLLS-D-II, HFKLT2-I, HFKLT2-II, KLT2-II, PXA- 34KK-A, DLS-I, DLS-II, DPLS-I, DPLS-II,
Two-way rope switch LLP1-S, JLK3-S, LLP1-Z, JLK3-Z, LLP2-1, KLT2-1, HFKLT2-1, LLP2-2, KLT2-2, HFKLT2-2, LLP2-3, KLT2- 3.HFKLT2-3, LLP3-S, JLK2-S, JLK4-S, JLKJ-S, JSB-KLS-1, LLP3-Z, JLK2-Z, JLK4-Z, JLKJ-Z, JSB-KLS-2, LLP4-Z, FKLT2-Z, LLP4-Y, FKLT2-Y, LLP5-1, KLT2A-1, LLP6-1, LSF-1, LLP6-2, LSF-2, LLP6A-L, YHLS-L, LLP7- I, LLP7-2, LXA-01GKH-T1-A, LXA-01GKH-T2-A, LXA-02GKH-T1-F, LXA-02GKH-T2-F, XLLS-I, XLLS-II, XLLS-JI, XLLS-J-II, XLLS-FI, XLLS-F-II, XLLS-PI, XLLS-P-II, XLLS-DI, XLLS-D-II, HFKLT2-I, HFKLT2-II, KLT2-II, PXA- 34KK-A, DLS-I, DLS-II, DPLS-I, DPLS-II,
