Thiết bị chống sét, ASP surge protector AD-L20-385-4 AD-L40-385-4 AD-L20-385-mini AD-L20-385-2 AD-L40-385-2
Đăng ngày 03-08-2022 03:26:34 PM - 400 Lượt xem
Mã sản phẩm: S004165
.

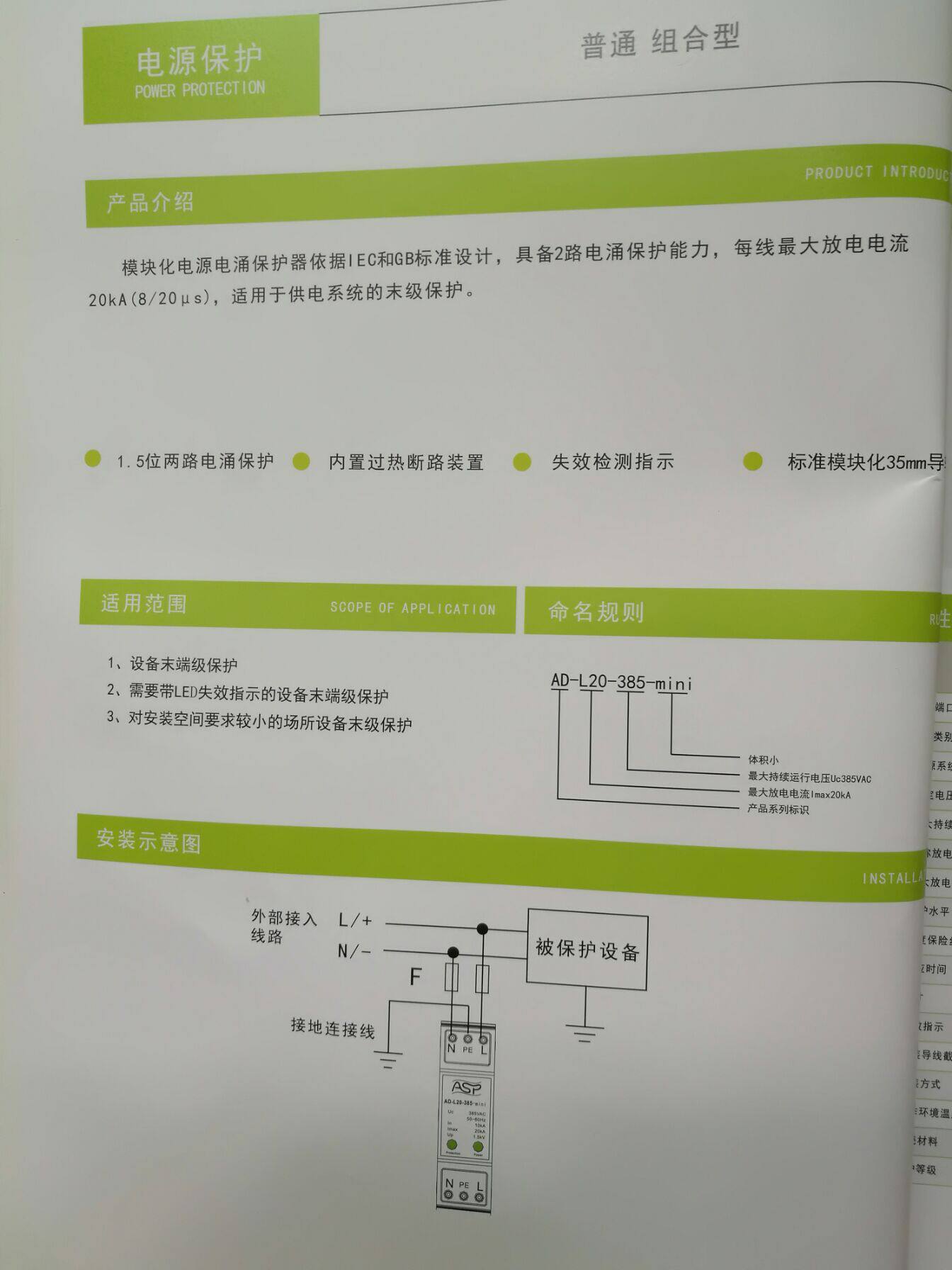

AD-L20-385-4; AD-L40-385-4 AD-L20-385-mini modular power surge protector is designed and manufactured according to IEC and GB standards. It has a large surge discharge capacity, and the maximum discharge current per bit is 20kA (8 20μS). This product is a standard 35mm guide rail installation, with power failure protection indication, built-in overheating and overcurrent circuit breaker, etc. It is suitable for the final protection of low-voltage power supply systems, and various corresponding specifications can be selected according to different power supply voltages. - Power supply, failsafe indication
- Maximum discharge current up to 20kA (8/20μS)
- Integrated fixed module
- Standard Modular 35mm Rail Mounting
- Built-in overheating, overcurrent circuit breaker
Product performance parameters: model | AD-L20-385-4 |
SPD port | One port (parallel SPD) |
SPD type | Compound |
Rated voltage Un | 220V AC 50~60Hz |
Maximum continuous operating voltage Uc | 385V AC 50~60Hz |
Rated load current IL (in series) | 10A |
Nominal discharge current In (8/20μS) | 10kA |
Maximum discharge current Imax (8/20μS) | 20kA |
Protection level (L/N-PE) Up | 1500V |
Protection level (LN) Up | 2500V |
Overheat protection device | built-in |
It is recommended to connect an overcurrent protection device in series | C 16A |
Failure indication | Indicator light on: normal / off: failure |
Connectivity | 2.5-4mm |
Install | 35mm standard rail |
Working temperature | -40/85℃ |
Shell material | Complies with UL94-0 |
Shell protection class | IP20 |
*
-
-
