AM1-80/4

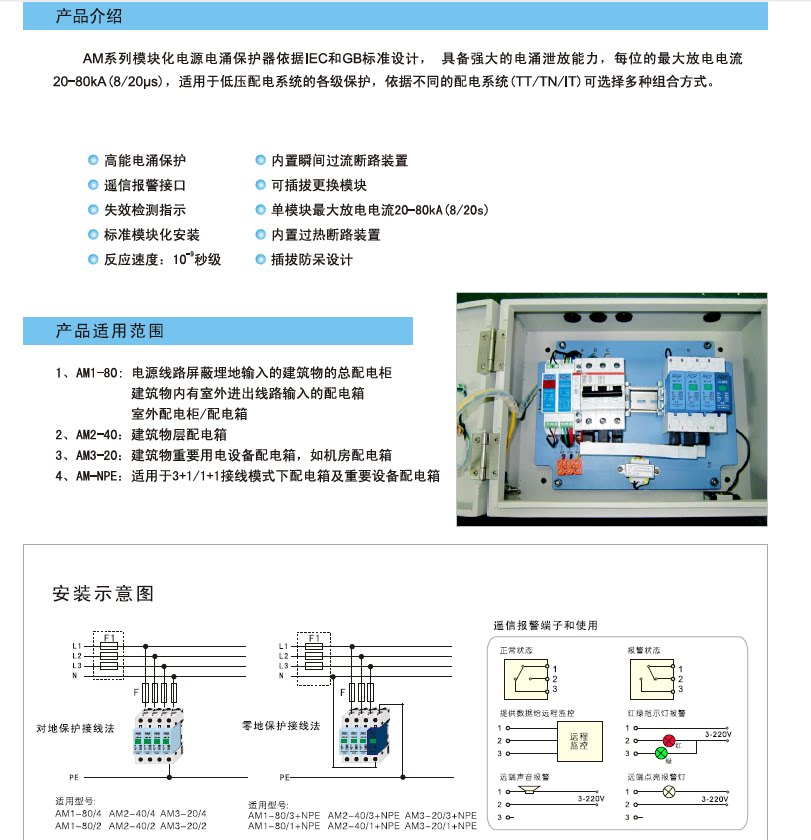

      AM1-80/4 modular power surge protector is designed according to IEC and GB standards, AM series low-voltage power distribution system surge protector has strong surge discharge capability, the maximum discharge current per bit is 80kA (8/20μs) , suitable for all levels of protection of low-voltage power distribution systems, according to different power distribution systems (TT/TN/IT) can choose a variety of combinations.

• High energy surge protection
• Built-in instantaneous overcurrent disconnect device
• Remote signaling alarm interface
• Pluggable Replacement Modules
• Failure detection indication
• The maximum discharge current of a single module is 80kA (8/20μs)
• Standard Modular Installation
• Built-in thermal circuit breaker
• Response speed: 10-9 seconds
• Plug-in foolproof design

• AM1-80/4: Main distribution cabinet of buildings with buried input of power line shielding
• Distribution boxes in buildings with outdoor incoming and outgoing line inputs
• External distribution cabinet/distribution box
• AM1-80/4 40kA (In), 80kA (Imax) four-module AC power lightning arrester
    AM1-80/4-S 40kA (In), 80kA (Imax) four-module AC power lightning protection device, with remote signal alarm terminal

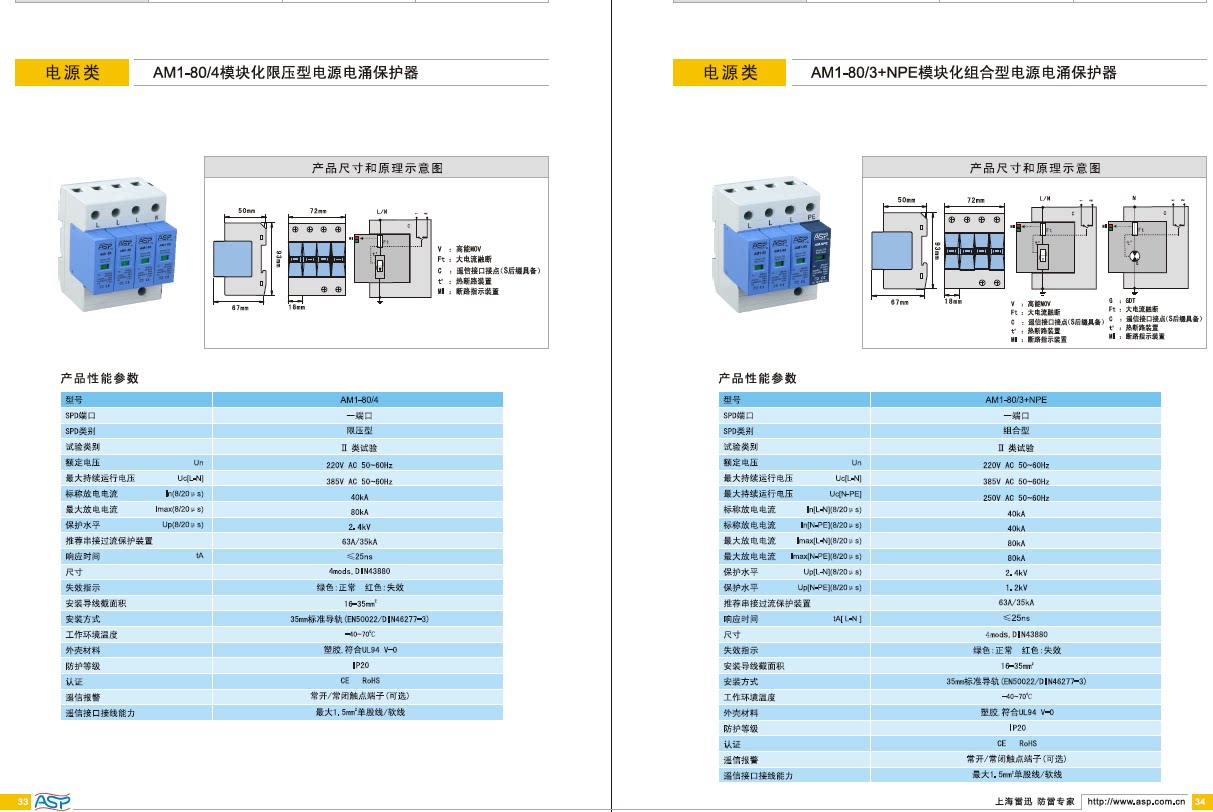

Product size and schematic diagram:
