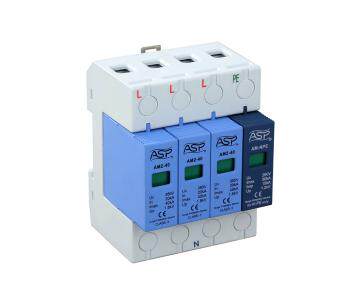

 AM2-40/3+NPE 20kA (In), 40kA (Imax) four-module AC power lightning arrester, including 3PL-N, 1N-PE

    AM2-40/3+NPE modular power surge protector is designed according to IEC and GB standards, AM series low-voltage power distribution system surge protector has strong surge discharge capability, the maximum discharge current per bit is 40kA (8/ 20μs), suitable for all levels of protection of low-voltage power distribution systems, according to different power distribution systems (TT/TN/IT) can choose a variety of combinations.
High energy surge protection

• Built-in instantaneous overcurrent disconnect device
• Remote signaling alarm interface
• Pluggable Replacement Modules
• Failure detection indication
• The maximum discharge current of a single module is 40kA (8/20μs)
• Standard Modular Installation
• Built-in thermal circuit breaker
• Response speed: ^10-9 seconds
• Plug-in foolproof design

• AM2-40: Building Floor Distribution Box
• AM-NPE: suitable for distribution boxes and important equipment distribution boxes in 3+1/1+1 wiring mode


Product size and schematic diagram:

SV-2/220EP power supply, network two-in-one lightning arrester, working voltage 220V

SV-2/024EP power supply, network two-in-one lightning arrester, working voltage 024V

ASafe-15 gap lightning arrester (single module), impulse current 15KA (10/350)

ASafe-25 gap lightning arrester (single module), impulse current 25KA (10/350)

ASafe-50 gap lightning arrester (single module), impulse current 50KA (10/350)

ASafe-NPE gap lightning arrester (single module N-PE ), impulse current 50KA (10/350)

Single module DC power surge arrester, working voltage 48V , 10kA ( In ) , 20kA ( Imax ), no leakage current

AM3-20/4 10kA ( In ) , 20kA ( Imax ) four-module AC power lightning arrester

AM3-20/3+NPE 10kA ( In ) , 20kA ( Imax ) four-module AC power lightning arrester, including 3P LN, 1N-PE

AM3-20/2 10kA ( In ) , 20kA ( Imax ) two-module AC power lightning arrester

AM3-20/1+NPE 10kA ( In ) , 20kA ( Imax ) two-module AC power lightning arrester, including 1L-N, 1N-PE

AM3-05D-220 5kA ( In ) , 10kA ( Imax ) 2 -way power supply lightning arrester , working voltage 220VAC

AM-24DC/2 10kA ( In ) , 20kA ( Imax ) two-module DC power lightning arrester 24VDC

AM-24DC 10kA ( In ) , 20kA ( Imax ) DC power lightning protection module 24VDC

AM2-40/4 20kA ( In ) , 40kA ( Imax ) four-module AC power lightning arrester

AM2-40/3+NPE 20kA ( In ) , 40kA ( Imax ) four-module AC power lightning arrester, including 3PL-N, 1N-PE

AM2-40/2 20kA ( In ) , 40kA ( Imax ) two-module AC power lightning arrester

AM2-40/1+NPE 20kA ( In ) , 40kA ( Imax ) two-module AC power lightning arrester, including 1PL-N, 1N-PE

AM1-80/4 40kA ( In ) , 80kA ( Imax ) four-module AC power lightning arrester

AM1-80/3+NPE 40kA ( In ) , 80kA ( Imax ) four-module AC power lightning arrester, including 3PL-N, 1N-PE

AM1-80/2 40kA ( In ) , 80kA ( Imax ) two-module AC power lightning arrester

AM1-80/1+NPE 40kA ( In ) , 80kA ( Imax ) two-module AC power lightning arrester, including 1PL-N, 1N-PE

AM1-160/1 80kA ( In ) , 160kA ( Imax ) one module AC power lightning arrester

AM1-120/1 60kA ( In ) , 120kA ( Imax ) one module AC power lightning arrester

A6-42-0NS socket type lightning arrester, rated load current 10A , output 4 3P/2 2P , nominal discharge current 5KA

A6-60-0NS 19 -inch rack socket lightning arrester, rated load current 10A , output 6 3P , nominal discharge current 5KA

SV-NET MSB video and data are transmitted through the network, and the output terminal is DC power input and output to the device through the network

CoaxN-TV/S coaxial video signal protection, F interface F/M , maximum continuous operating voltage 8V , transmission frequency 10M , nominal discharge current 5KA

CoaxB-TV/S coaxial video signal protection, BNC interface F/M , maximum continuous operating voltage 8V , transmission frequency 10M , nominal discharge current 5KA

COAXB-TV/16S coaxial video signal protection, BNC interface F/M , maximum continuous operating voltage 8V , 16 channels of input and output, transmission frequency 10M , nominal discharge current 5KA

SR-P24VAC/2S modular power supply AC24V, working current 1.5A, 2 -wire protection, nominal discharge current 5KA , 35mm rail installation

SR-P24V/2S modular power supply DC24V, working current 1.5A, 2 -wire protection, nominal discharge current 5KA , 35mm rail installation

SR-E24V/4S modular signal 24V, 4 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-E24V/2S modular signal 24V, 2 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-E12V/4S modular signal 12V, 4 data lines protection, nominal discharge current 5KA , 35mm rail installation

SR-E12V/2S modular signal 12V, 2 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-E06V/4S modular signal 6V, 4 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-E06V/2S modular signal 6V, 2 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-D200V/2S modular high-power signal 200V, 2 data line protection, nominal discharge current 5KA , 35mm rail installation

SR-D120V/2S modular high-power signal 120V, 2 data line protection, nominal discharge current 5KA , 35mm rail installation

RJ45-TELE/4S telephone communication signal lightning arrester, 4 data lines protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-TELE/2S telephone communication signal lightning arrester, 2 data lines protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-E1000/8S 1000M network signal lightning arrester, 8 data lines protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-E100/4S 100M network signal lightning arrester, 4 data lines protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-24E 100M network lightning arrester, 24 pairs of data line protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-16E ( integral ) 100M network lightning arrester, 16 pairs of data line protection, nominal discharge current 5KA ( RJ45 in and out terminals)

RJ45-12K 1000M network signal lightning arrester, 12 pairs of data line protection, nominal discharge current 5KA ( RJ45 in and out terminals)

ST75F 10KA ( In ), 20KA ( Imax ) metric F head, F/M , matching impedance 75 ohms, frequency range 0~2.5G

ST50T 10KA ( In ), 20KA ( Imax ) metric TNC head, F/M , matching impedance 50 ohms, frequency range 0~2.5G

ST50N 10KA ( In ), 20KA ( Imax ) metric N head, F/M , matching impedance 50 ohms, frequency range 0~2.5G

ST50L 10KA ( In ), 20KA ( Imax ) metric L16 head, F/M , matching impedance 50 ohms, frequency range 0~2.5G

ST50D 10KA ( In ), 20KA ( Imax ) metric DIN7/16 head, F/M , matching impedance 50 ohms, frequency range 0~2.5G

ST50B 10KA ( In ), 20KA ( Imax ) metric BNC head, F/M , matching impedance 50 ohms, frequency range 0~2.5G

ASP FLD3-20/4 10kA ( In ) , 20kA ( Imax ) four-module AC power lightning arrester, special model for design institute

ASP FLD3-20/3+NPE 10kA ( In ) , 20kA ( Imax ) four-module AC power lightning arrester, including 3PL-N, 1N-PE, special model for design institute

ASP FLD3-20/2 10kA ( In ) , 20kA ( Imax ) two-module AC power lightning arrester, special model for design institute

ASP FLD3-20/1+NPE 10kA ( In ) , 20kA ( Imax ) two-module AC power lightning arrester, including 1PL-N, 1N-PE, special model for design institute

ASP FLD2-40/4 20kA ( In ) , 40kA ( Imax ) four-module AC power lightning arrester, special model for design institute

ASP FLD2-40/3+NPE 20kA ( In ) , 40kA ( Imax ) four-module AC power lightning arrester, including 3PL-N, 1N-PE, special model for design institute

ASP FLD2-40/2 20kA ( In ) , 40kA ( Imax ) two-module AC power lightning arrester, special model for design institute

ASP FLD2-40/1+NPE 20kA ( In ) , 40kA ( Imax ) two-module AC power lightning arrester, including 1PL-N, 1N-PE, special model for design institute

ASP FLD1-80/4 40kA ( In ) , 80kA ( Imax ) four-module AC power lightning arrester, special model for design institute

ASP FLD1-80/3+NPE 40kA ( In ) , 80kA ( Imax ) four-module AC power lightning arrester, including 3PL-N, 1N-PE, special model for design institute

ASP FLD1-80/2 40kA ( In ) , 80kA ( Imax ) two-module AC power lightning arrester, special model for design institute

ASP FLD1-80/1+NPE 40kA ( In ) , 80kA ( Imax ) two-module AC power lightning arrester, including 1PL-N, 1N-PE, special model for design institute

ASP FLD1-15/100 gap lightning arrester (single module), impulse current 15KA (10/350) , special model for design institute

ASP FLD1-25/100 gap lightning arrester (single module), impulse current 25KA (10/350) , special model for design institute

XP35A 5KA ( In ), 10KA ( Imax ) Xpress series base

XP35B 5KA ( In ), 10KA ( Imax ) 500mA ( IL ) , four-wire input and output, Xpress series base

XP19P-24T 5KA ( In ), 10KA ( Imax ) working voltage 170V , 24 RJ45 input and output, 19 - inch rack type, pluggable replacement module, with power protection output, practical communication line

XP19P-24E 5KA ( In ), 10KA ( Imax ) working voltage 6V , 24 -way RJ45 input and output, 19 -inch rack type, pluggable replacement module, with power protection output, used in network lines

XP19P-24B 5KA ( In ), 10KA ( Imax ) working voltage 6V , 24 BNC input and output, 19 - inch rack type, pluggable replacement module, with power protection output, used in monitoring lines

XP19P-16E 5KA ( In ), 10KA ( Imax ) working voltage 6V , 16 -way RJ45 input and output, 19 -inch rack type, pluggable and replaceable network module, with power protection output, applied to network lines

XP19P 5KA ( In ), 10KA ( Imax ) with power protection output, 19 -inch rack-mount Xpress series base

XP19N-24T 5KA ( In ), 10KA ( Imax ) working voltage 170V , 24 -way RJ45 input and output, 19 -inch rack type, pluggable and replaceable communication module, practical communication line

XP19N-24E 5KA ( In ), 10KA ( Imax ) working voltage 6V , 24 -way RJ45 input and output, 19 -inch rack type, pluggable and replaceable network module, used in network lines

XP19N-24B 5KA ( In ), 10KA ( Imax ) working voltage 6V , 24 BNC input and output, 19 - inch rack type, pluggable and replaceable video module, used in monitoring lines

XP19N-16E 5KA ( In ), 10KA ( Imax ) working voltage 6V , 16 -way RJ45 input and output, 19 -inch rack type, pluggable and replaceable network module, used in network lines

XP19N-16B 5KA ( In ), 10KA ( Imax ) working voltage 6V , 16 BNC input and output, 19 - inch rack type, pluggable and replaceable video module, used in monitoring lines

XP19P-16B 5KA ( In ), 10KA ( Imax ) working voltage 6V , 16 BNC input and output, 19 - inch rack type, pluggable replacement module, with power protection output, used in monitoring lines

XP19N 5KA ( In ), 10KA ( Imax ) 19 -inch rack-mount Xpress series base

M100E M series module RJ11/RJ45 interface network rear-stage protector, 48V , nominal discharge current 500A ( RJ11/RJ45 input and output terminals)

M06N cooperates with XP35B to protect various signals, 6V , nominal discharge current 500A

M06F M series module F10 interface communication post-stage protector, 6V , nominal discharge current 500A

M06C M series module wiring type interface communication rear stage protector, 6V , nominal discharge current 500A

M06B M series module BNC interface communication rear-level protector, 6V , nominal discharge current 500A
