Thiết bị chống sét, ASP surge protector AM3-20/3+NPE AM3-20/4 AM3-20/2 AM3-20/1+NPE
Đăng ngày 03-08-2022 03:29:39 PM - 618 Lượt xem
Mã sản phẩm: S004166
AM3-20/3+NPE
AM3-20 3+NPE modular power surge protector is designed according to IEC and GB standards. The surge protector has strong surge discharge capability, and the maximum discharge current per bit is 20kA (8 20μs), which is suitable for low-voltage power distribution. For all levels of protection of the system, various combinations can be selected according to different power distribution systems (TT TN IT). - High energy surge protection
- Built-in instantaneous overcurrent disconnect device
- Remote signaling alarm interface (optional)
- Pluggable Replacement Modules
- Failure detection indication
- The maximum discharge current of a single module is 20kA (8/20μs)
- Standard Modular Installation
- Built-in thermal circuit breaker
- Response speed: 10-9 seconds
- Plug-in foolproof design

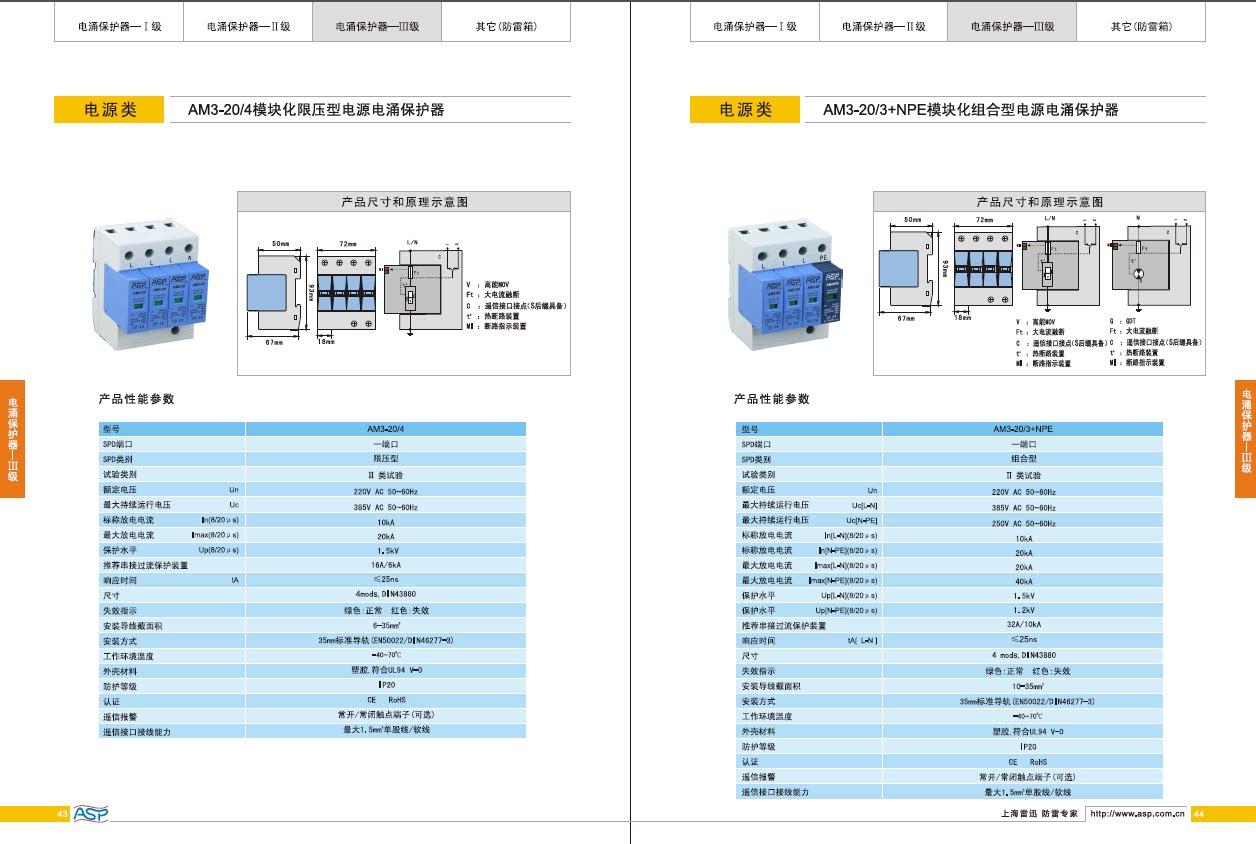

Product performance parameters: model | AM3-20/3+NPE |
SPD port | one port |
SPD category | Combination |
Power Systems | TT-TN-IT |
Rated voltage Un | 220V |
Maximum continuous operating voltage Uc | 385V |
Nominal discharge current In(8/20μs) | 10kA |
Maximum discharge current Imax(8/20μs) | 20kA |
Protection level UP(8/20μs) | <1.5kV |
It is recommended to connect an overcurrent protection device in series | 32A/10kA |
Response time | ≤25ns |
size | 4mods,DIN43880 |
Failure indication | Green: Normal Red: Failed |
Installation lead cross-sectional area | 6-25mm 2 |
Installation method | 35mm standard rail (EN50022/DIN46277-3) |
Working temperature | -40/85℃ |
Shell material | Plastic, conforms to UL94 V-0 |
Shell protection class | IP20 |
Certification | CE RoHS |
Remote signaling alarm | Normally open/normally closed contact terminal (optional) |
Cross-sectional area of remote signaling terminal | Up to 1.5mm 2 solid wire/cord |
*Product parameters are subject to the actual product manual.The scope of products: - AM3-20: Distribution boxes for important electrical equipment in buildings, such as distribution boxes in computer rooms.
- AM-NPE: suitable for distribution boxes and important equipment distribution boxes in 3+1/1+1 wiring mode
-
-
