RƠLE DZY-201 202 203 204 205 206 207 208 209 210
  • RƠLE DZY-201 202 203 204 205 206 207 208 209 210

RƠLE DZY-201 202 203 204 205 206 207 208 209 210

  • Đăng ngày 19-04-2018 10:24:18 AM - 1156 Lượt xem
  • Mã sản phẩm: DZY-2
    • Product Usage
    The DZY-202 intermediate relay is used in various protection and automatic control devices for AC/DC operation to increase the number and capacity of contacts. The "X" is added to the "200" basic model with a mechanically held actuating signal contact and an action signal indicator. The coil diameter of this product has been changed to 0.09mm or more to meet the requirements of anti-accident measures in the power sector.
    Model and its meaning
    DZY-202 intermediate relay model and its meaning

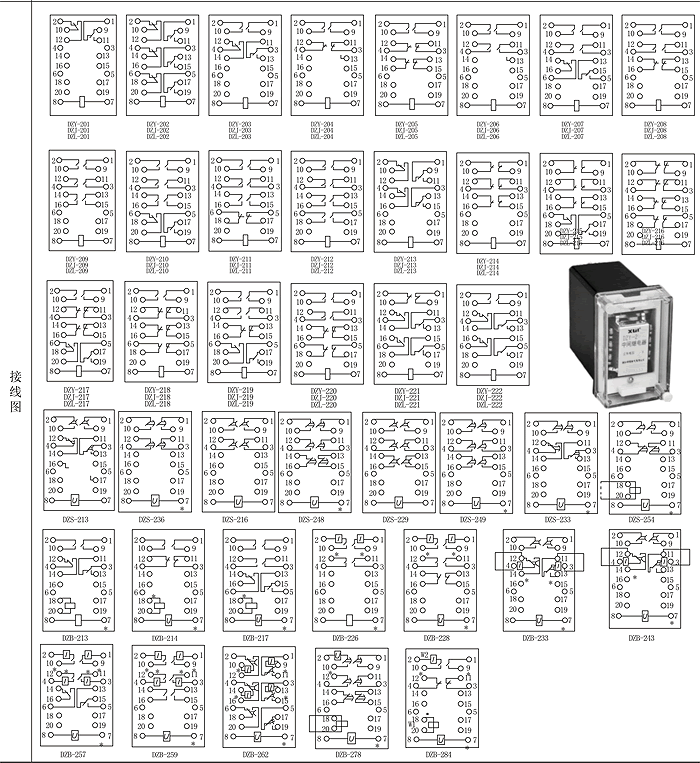

    Contact form diagram
    DZY-202 Intermediate Relay Contact Form
    Product size and hole size
    DZY-202 intermediate relay product size and hole size
    Principle of operation
    When the energizing amount of the relay coil is equal to or greater than its actuation value, the armature is attracted to the guide magnet, and at the same time, the armature presses the contact spring to make the contact turn on, off, or switch the controlled circuit. When the coil of the relay is de-energized or the amount of excitation is reduced below its return value, the armature and the contact piece return to their original positions.
    Related models

    Tình trạng sản phẩm:


    DZY-201 202 203 204 205 206 207 208 209 210
    \


    Đồng hồ đo mức báo phao Automation Instrument UQZ-1-0001/2/3/4/ Float level meter UQZ-2-0023/4/5
    Đồng hồ đo mức báo phao Automation Instrument UQZ-1-0001/2/3/4/ Float level meter UQZ-2-0023/4/5 Liên hệ
    Quạt làm mát động cơ SEW forced cooling fan GR-160A GR-160B 380V 22282602 22282610
    Quạt làm mát động cơ SEW forced cooling fan GR-160A GR-160B 380V 22282602 22282610 Liên hệ
    Bộ nguồn DC Weidmüller power supply PRO MAX/ECO 3 120/240/480/960W 24V 5/10/20/40A
    Bộ nguồn DC Weidmüller power supply PRO MAX/ECO 3 120/240/480/960W 24V 5/10/20/40A Liên hệ
    central air conditioning condensate drainage pump lift pump MP30700
    central air conditioning condensate drainage pump lift pump MP30700 Liên hệ
    Digital temperature controller TAIE FY400/FY800/FY700/FY900/FY600/PID
    Digital temperature controller TAIE FY400/FY800/FY700/FY900/FY600/PID Liên hệ
    PID intelligent temperature controller, series digital temperature controller TAIE, FU48/FU72/FU86/FU96
    PID intelligent temperature controller, series digital temperature controller TAIE, FU48/FU72/FU86/FU96 Liên hệ
    West instrument, P4100(4100+) P4170(4170+) P4700(4700+) 4170-1111-0020
    West instrument, P4100(4100+) P4170(4170+) P4700(4700+) 4170-1111-0020 Liên hệ
    West instrument, P8100(8100+) P8170(8170+) P8700(8700+) 8170-1111-0020
    West instrument, P8100(8100+) P8170(8170+) P8700(8700+) 8170-1111-0020 Liên hệ
    West instrument, 6100+, 8100+, 4100+, 4170+ series
    West instrument, 6100+, 8100+, 4100+, 4170+ series Liên hệ
    EUROTHERM Continental PID digital controller 2404/2408 3508/3504 series, 01% display accuracy
    EUROTHERM Continental PID digital controller 2404/2408 3508/3504 series, 01% display accuracy Liên hệ
    SHIMAX Thermostat MAC50A MAC50B MAC50C MAC50D
    SHIMAX Thermostat MAC50A MAC50B MAC50C MAC50D Liên hệ
    SHIMAX Thermostat MAC3A MAC3B MAC3C MAC3D
    SHIMAX Thermostat MAC3A MAC3B MAC3C MAC3D Liên hệ




    TÂN THÀNH CAM KẾT

    • Sản phẩm, hàng hóa chính hãng.
    • Giá cả cạnh tranh.
    • Dịch vụ chăm sóc khách hàng tận tâm.

    Thông Tin Công Ty

    Chính sách và quy định

    Đã thông báo



    Hỗ trợ khách hàng



    THÔNG TIN LIÊN HỆ:
    -------------------------------
    CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH
    Trụ sở: số 124 ngõ 79 Yên Hoà-Cầu giấy-HN
    Kinh doanh 1 : 0816.861.515
    Kinh doanh 2 : 0836.861.515
    Email: tthkinhdoanh@gmail.com
    Email: tthkinhdoanh01@gmail.com

  • Kết nối với chúng tôi


    • © Bản quyền thuộc về CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH.

    Thiết kế bởi CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH.

    model Contact form Winding type Rated voltage (V)
    DC communicate with
    DZY-201, DZJ-201 002 A voltage working winding 12V~220V 12V~38V
    DZY-201X, DZJ-201X 002 A voltage working winding 12V~220V 12V~38V
    DZY-202, DZJ-202 006 A voltage working winding 12V~220V 12V~38V
    DZY-202X, DZJ-202X 006 A voltage working winding 12V~220V 12V~38V
    DZY-203, DZJ-203 202 A voltage working winding 12V~220V 12V~38V
    DZY-203X, DZJ-203X 202 A voltage working winding 12V~220V 12V~38V
    DZY-204, DZJ-204 220 A voltage working winding 12V~220V 12V~38V
    DZY-204X, DZJ-204X 220 A voltage working winding 12V~220V 12V~38V
    DZY-205, DZJ-205 240 A voltage working winding 12V~220V 12V~38V
    DZY-205X, DZJ-205X 240 A voltage working winding 12V~220V 12V~38V
    DZY-206, DZJ-206 400 A voltage working winding 12V~220V 12V~38V
    DZY-206X, DZJ-206X 400 A voltage working winding 12V~220V 12V~38V
    DZY-207, DZJ-207 402 A voltage working winding 12V~220V 12V~38V
    DZY-207X, DZJ-207X 402 A voltage working winding 12V~220V 12V~38V
    DZY-208, DZJ-208 420 A voltage working winding 12V~220V 12V~38V
    DZY-208X, DZJ-208X 420 A voltage working winding 12V~220V 12V~38V
    DZY-209, DZJ-209 600 A voltage working winding 12V~220V 12V~38V
    DZY-209X, DZJ-209X 600 A voltage working winding 12V~220V 12V~38V
    DZY-210, DZJ-210 602 A voltage working winding 12V~220V 12V~38V
