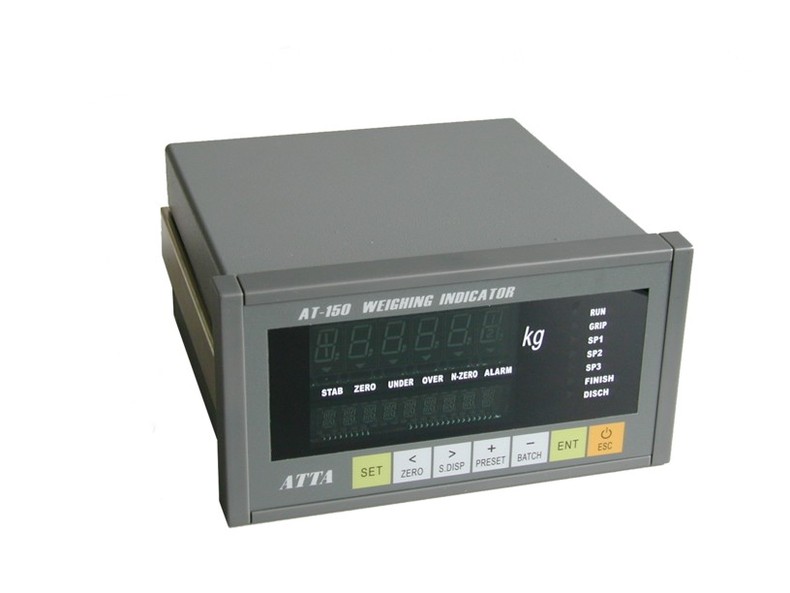

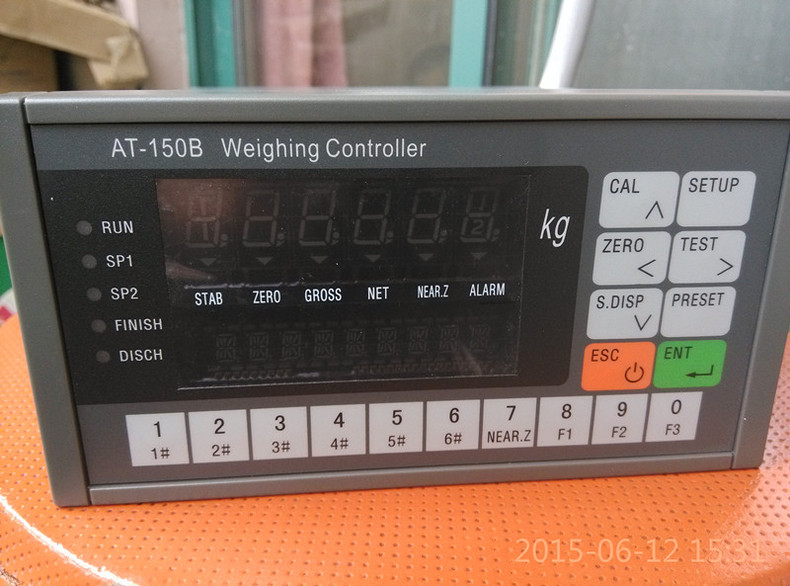

AT-150 fixed value controller has the characteristics of high precision, stable performance, powerful functions, and easy operation. It is mainly used for the measurement and control of automatic quantitative bagging scales. It can realize all automatic control process except manual bagging.
Features
a Fluorescent double display screen, clear and intuitive b 10-
way switch output can directly drive the solenoid valve c 8-
way switch input
d Fully automatic large, medium and small feeding control
e Programmable timer for process time control
f Automatic fall correction function
g Automatic zero tracking function
h overshoot detection and suppression function
i full panel digital adjustment and working parameter setting
j analog and digital filter parameter setting
k9 group preset value settings, adapting to different materials and packaging specifications
l dual scale mode, dual meter composition System, no need for external logic
Technical Specifications
○General Specifications
Power Supply: AC220V50HZ±10%
Power Filter: Built
-in Operating Temperature: 0~40°C
Humidity: 90%RH Non-condensing
Power Consumption: About 20W
Meter Net Weight: About 1.85kg
Physical Dimensions : 170(W)�w165(D)�w90(H)mm
○Analog sensor power supply : DC10V280mA ,
4 350Ω sensors can be connected in parallel Range: 0.2~20mV A/D conversion method: Σ-Δ A/D conversion speed: 120 times/second






Non- linearity: 0.01%FS
Zero drift: 0.1μV/°C
Gain drift: 5ppM/°C
Internal resolution: 1/1000000 (MAX)
Display accuracy: 1/10000F.S
○Digital
weight display: Main display six digits 13mm high brightness Fluorescent digital tube
Status display: Nine-digit 7mm high-brightness fluorescent digital tube for
secondary display




AT-150D weighing controller, fixed value controller, has the characteristics of high precision, fast speed, stable performance, powerful function, easy operation, etc. It is mainly used for measurement and control of automatic quantitative bagging scale. It can realize all automatic control process except manual bagging.

Features

□ One controller controls double scales

□ Dedicated fluorescent dual display, clear and intuitive

□ 14 switch outputs can directly drive solenoid valves

□ 12 switch input

□ Fully automatic large, medium and small feeding control

□ Programmable timer for process time control

□ Automatic fall correction function

□ Automatic zero tracking function

□ Overshoot detection and suppression function

□ Full panel digital adjustment and working parameter setting

□ Analog and digital filter parameter settings

□ 9 groups of preset value settings, single scale rotation/double scale combination mode optional, suitable for different materials and packaging specifications

Front Panel Description

Main display: double five-digit number, used to display weighing data, instrument parameters, etc., the left is A scale, and the right is B scale.

Secondary display : thirteen English letters and numbers, used to display information such as cumulative weight, cumulative times, target value, working mode, working parameters and prompts.

Status Indicator:

� STAB (stable): When the weight of the material in the weighing hopper is stable within the range of judgment, the indicator light is on

� ZERO (zero position): When the weight of the material in the scale bucket is within the range of 0±1/4d , the indicator light is on

� UNDER (Under difference): When this light is on, it means that the quantitative value is under difference

� OVER (over tolerance): When this light is on, it means that the quantitative value is out of tolerance

� FINAL (to the amount): After the feeding is completed, the indicator light is on

¤ GRIP (pocket grip): When this light is on, it means the bag grip signal output is valid

¤ SP1 (big throw): When this light is on, it means that the big throw signal output is valid

¤ SP2 (CDI): When this light is on, it means the CPI signal output is valid

¤ SP3 (Small throw): When this light is on, it means that the small throw signal output is valid

¤ DISCH (discharging): When the light is on, it means that the discharging signal output is valid

keyboard :

Calibration/∧ key: used to calibrate the instrument, select parameter items, and input data

Setting key: used to set the working parameters of the instrument

Reset A key: used to reset A scale

Clear B key: used to clear the B scale

Test/∨ key: used to detect the switch value of the instrument, select parameter items, and input data

Sub-display/< key: switch sub-display content, select parameter items, input data

Workgroup > key: used to select the preset workgroup

Exit key: used to exit the current working state of the instrument, and also used to clear the alarm

Confirmation key: used to confirm the current function of the instrument or end the keyboard input data operation

1/target value ~ 0/batch key: number key and preset value setting

illustrate:

1. AC 220V power input terminal L G N , L live wire, G ground wire, N neutral wire

2. B scale sensor connection terminal

3. A scale sensor connection terminal

4. Serial port (RS-485) output terminal

5. Digital input terminal

6. Switch output terminal

technical specifications

○ General Specifications

Power supply: AC220V 50HZ ± 10%

Mains filter: included

Working temperature: 0~40℃

Humidity: 90% RH non-condensing

Power consumption: about 20W

Meter net weight: about 2kg

Physical Dimensions: 192 ( W )�w 165（D）�w 96（H）mm

○ Analog part

Sensor power supply: DC10V 280mA , four 350Ω sensors can be connected in parallel

Input impedance: greater than 10MΩ

Zero adjustment range: 0.2~20mV

Input sensitivity: 0.3μ V/d

Input range: 0.2~20mV

A/D conversion method: Σ - Δ

A/D conversion speed: 100 times/second

Nonlinearity: 0.01% FS

Zero drift: 0.1 μ V/ ℃

Gain drift: 5ppM/ ℃

Internal resolution: 1/1000000 ( MAX )

Display accuracy: 1/20000 FS

○ Number part

Weight display: main display dual five-digit 13mm high-brightness fluorescent digital tube

Status display: thirteen-digit 7mm high-brightness fluorescent digital tube for secondary display

Weight unit: kg

Negative number display: " — "

Overload display: " OFL "

Decimal point position: 5 options

Keyboard: 19 key touch keyboard
