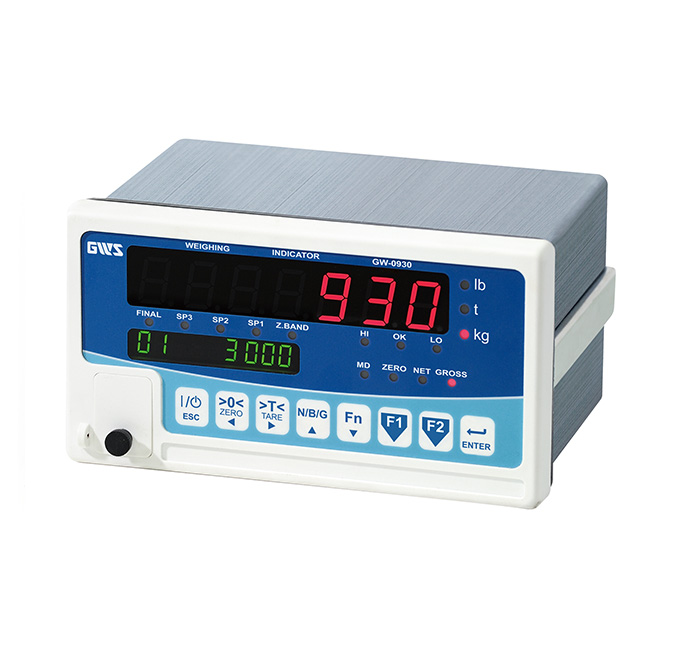

Bộ điều khiển cân, hiển thị cân Juwei GW-0930 1600 weight automatic control display meter quantitative ingredients package

  • Đăng ngày 23-12-2022 02:47:03 AM - 183 Lượt xem
  • Mã sản phẩm: S004427
    • Bộ điều khiển cân, hiển thị cân Juwei GW-0930 1600 weight automatic control display meter quantitative ingredients package
    •

    Tình trạng sản phẩm:


    Features

    • High-precision automatic/batching metering controller is an industrial control special metering control instrument specially designed for automatic metering/batching and mixing control
    • A variety of metering processes for internal parts It can be widely used in various metering control batching systems. Control systems for automatic batching, mixing, discharging, metering, etc. of single or multiple raw materials, or other metering applications, can be easily connected with PLC, man-machine interface, or connected with a computer.
    • Industrial level standard design industrial control instrument, suitable for various harsh industrial environments
    • Strong anti-noise ability, effectively suppress the interference of power supply, electromagnetic wave and radio frequency
    • Dual display panels can simultaneously display real-time weight and various setting data values, easy to operate
    • With intelligent digital filtering function, suitable for use in unstable environments
    • All recipes, setting data, logic output, function setting and weight calibration can be modified or corrected by keys or by RS232/RS485
    • The standard machine has RS-485 or RS-232 serial transmission interface, which can be connected to remote display, computer, PLC and man-machine interface and other equipment (supports Modbus RTU and general ASCΙΙ)
    • The standard machine has 8 control input contacts and 8 relay output contact functions, which can be defined by the user or defined by RS232/RS485 communication.
    • A total of 0~30 groups of codes (recipes) can be memorized, and each group of codes includes: target weight (Final), stage fast feeding, large supply, large input advance (SP1), second stage medium feeding, medium supply, The control output weight setting value (Setpoints) such as the advance amount of middle input (SP2), the drop weight (SP3), the weight near zero point (Z.Band), the upper limit weight (HI) and the lower limit weight (LO) etc.

    Optional interface

    • 16Bit D/A interface (3 modes output 0~5V, 0~10V, 0~20mA)
    • BCD CODE group call

    General Specifications

    power supply

    Single-phase AC voltage 100V ~ 240V 50/60Hz (10VA)

    weight

    1.7kg

    operating temperature

    -10°C to + 40°C (+14°F to + 104°F)

    operating humidity

    85% relative humidity (without condensing water droplets)

    Mechanism size

    210(W) ´ 108(H) ´ 148(D)

    Input signal and A/D conversion

    A/D conversion method

    △ Σ

    A/D conversion speed

    100 times/sec

    load cell excitation power supply

    DC 5V ±5%, 120mA (can be connected to 8 350 Ω load cells)

    Large measuring voltage

    -1mV ~ 39mV

    Input Sensitivity/Resolution

    Above 0.15mV/D 1 / 60000 d

    digital part

    main display area

    7-digit, red 7-segment display, character height 0.8˝. display weight

    Attached display area

    9 digits, red 7-segment display, character height 0.36˝. Gross weight value, net weight value, hold value, tare value, accumulative times value, accumulative weight value, group/measurement completion value

    status indication

    3φLEDs. Final, SP3, SP2, SP1, Z.Band, HI, OK, LO, MD (stable), ZERO (zero point), NET (net weight), GROSS (gross weight)

    unit instruction

    5φLEDs. Kg, t, lb

    small weight scale

    1, 2, 5, 10, 20, 50

    decimal point

    0, 0.0, 0.00, 0.000, 0.0000, 0.00000

    Memory

    Calibration parameters and function settings are stored in EEPROM
