F372A

product Overview

It's just that it is difficult to grasp the changes of physical quantities by numbers, and it can be clearly confirmed visually through the waveform display.

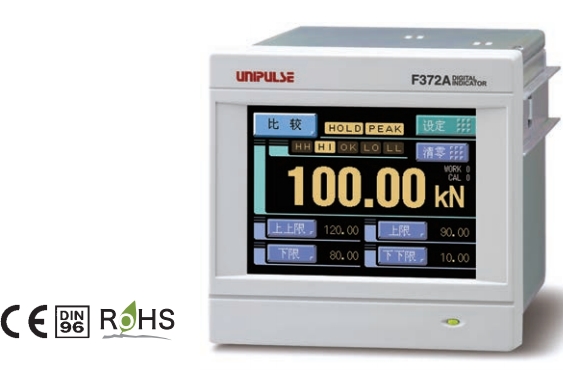

F372A is a dynamic force measuring instrument that measures various physical quantities such as force, pressure, torque, etc. and displays their waveforms by using in combination with a resistance strain sensor.
It's just that it is difficult to grasp the changes of physical quantities by numbers, and it can be clearly confirmed visually through the waveform display.
The high-speed processing capacity of 2000 times per second enables small numerical changes to be reflected in time. In addition to the upper and lower limit comparison functions, it also has various hold functions and judgment functions. These functions make it suitable for production control management, automatic instruments, and testing. Machines and other aspects have been widely used.

expertise

"F372A" is a force measuring instrument that uses strain gauge sensors to measure pressure, load, torque, displacement, etc.
It has rich maintenance functions and judging functions of whether it is qualified or not, making it play an important role in the field of factory online quality management.

Waveform display

It’s just that it’s hard to capture the changes in physical quantities by numbers. Through the waveform display, you can take out the points you need on the waveform and compare them with upper and lower limits. You can change the detection workpiece at will ^※ , and set various conditions to control Which to compare? Determine.

※It can memorize various settings of 16ch workpieces (types of holding, setting values ​​of upper and lower limits).

■Keeping type Sampling, peak value, valley value, PP, average value, inflection point, maximum value, minimum value, difference between maximum value and minimum value

Interval setting External designated interval (peak value, valley value, PP, average value) external + time designated interval (peak value, valley value, PP, average value) level + time designated interval (peak value, valley value, PP, average value) Level (peak value, valley value) <2-point hold> One detection interval can carry out two specific combination hold functions at the same time. Hold mode can be selected from 26 modes in the table below. <Previous value hold> can compare the upper and lower limits of the difference between the current measured value and the last measured value.

Difference value = current hold value (display value) - last hold value <relative comparison> You can compare the upper and lower limits of the difference (relative value) between hold value A and hold value B.
