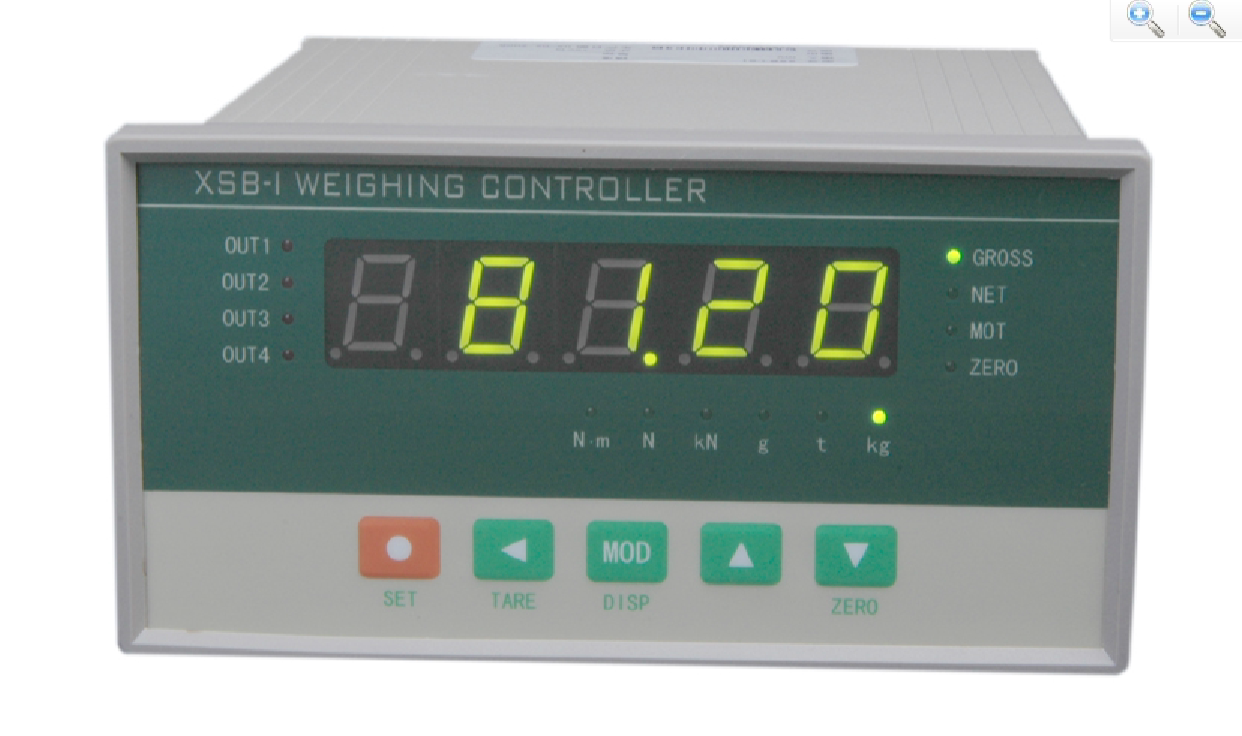

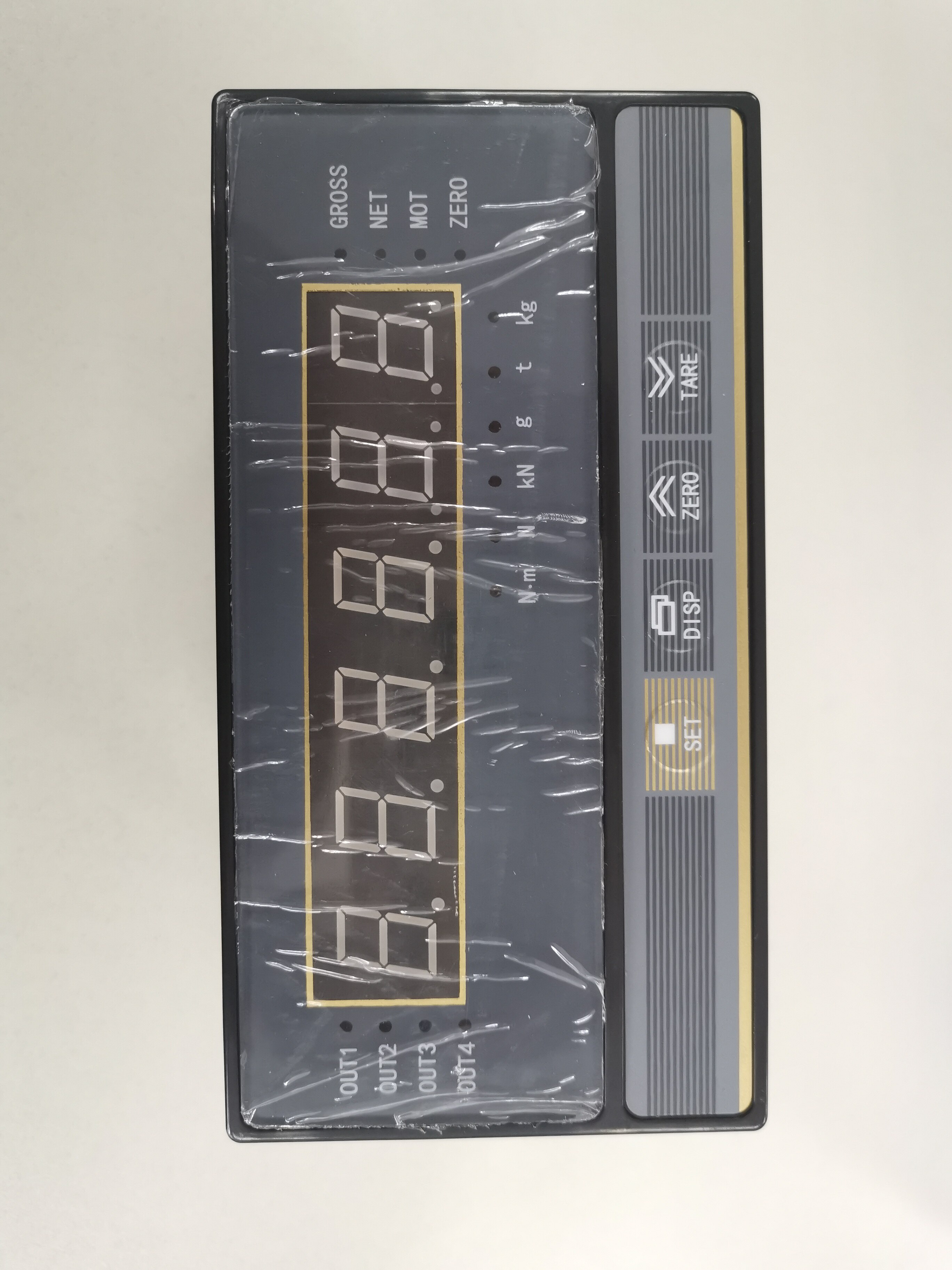

Bộ điều khiển cân, hiển thị cân XSB-I/II A force value weighing display control instrument single scale quantitative packaging machine ingredients

code and description

CHB

The size is 160×80, the input signal is millivolt input, 5-digit display, 2-point alarm, one precision external supply (150MA)

code description

XSB-I(A)/

1-point digital input——for external zero reset; 1-way external precision power supply (≥200mA)

Dimensions
_

A—

160(W)×84(H)×125(L)

panel form

h

Horizontal

display form

1

single display

Comparison output type, if none can be omitted

TO

4 points OC gate output

TR

4 points relay output

Analog output

A0

no output

A1

Current output (4 ~ 20) mA

A2

Voltage output (1~5) V

Communication Interface

S0

No communication interface

S1

RS-232 interface

S2

RS-485 interface

print function

P

print interface

P1

Integrated printing (need to be customized)

Instrument power

V0

100V AC～240V AC

non-standard function

N

N means non-standard function

Modbus communication protocol option

-M

code and description

XSB-IC—

1-point digital input——for external zero reset; 2-point relay output——for comparative control output, 6 output modes can be configured; 1-way external precision power supply 10V (≥150mA)

Output Interface

□□

The output interface can add transmission and communication functions, but the transmission and communication functions can only be selected one of them, and cannot be added at the same time. None can be omitted.

A1

(4～20)mA

S1

RS-232

S2

RS-485

Modbus communication protocol option

-M

code and description

XSB-II—

5-point switch input——used to start, allow unloading, error alarm reset, allow unloading, bag clamping signal
5-point switch output—used for rough metering output, fine metering output, error alarm output, bag clipping respectively Output, unloading output
, external precision power supply 10V (≥200mA)

compare output type

T

O: indicates OC gate output, R: indicates relay output

Communication Interface

S0

No communication interface

S1

RS-232 interface

S2

RS-485 interface

print interface

P

P means print function

Large screen display interface

D.

There is a large-screen display interface, if there is no interface, it can be omitted

code description

JT-XSB

1. 98(W) 98(W) × 50(H) × 162(L) without transparent cover or 106(W) × 55(H) × 165(L) with transparent cover;
2. Load input, control input (can be selected by parameters);
3. Force value display, cumulative batching (can be selected by parameters)
4. Transmission input 1 channel 12-bit D/A current output (0, 4 ~ 20) mA or 1 channel 16-bit D/A A Current output (0, 4 ~ 20) mA (optional);
5. Communication interface: RS-232MODBUS RTU interface or RS-485MODBUS RTU interface (optional)
6. Instrument power supply 220 V AC
