Bộ điều khiển cân, hiển thị cân Zhiheng AC-9800 check weighing display controller meter filling material interchange AC-8100

Đăng ngày 23-12-2022 02:50:14 PM - 347 Lượt xem

Mã sản phẩm: S004428

Bộ điều khiển cân, hiển thị cân Zhiheng AC-9800 check weighing display controller meter filling material interchange AC-8100

Tình trạng sản phẩm:

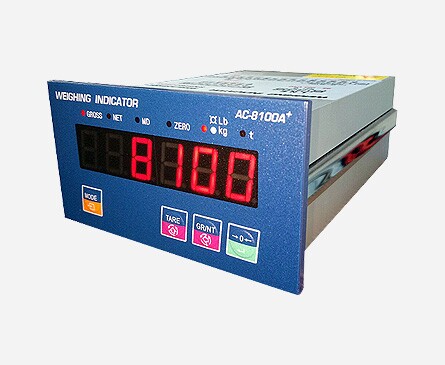

Weighing Display AC-8100A+
feature:

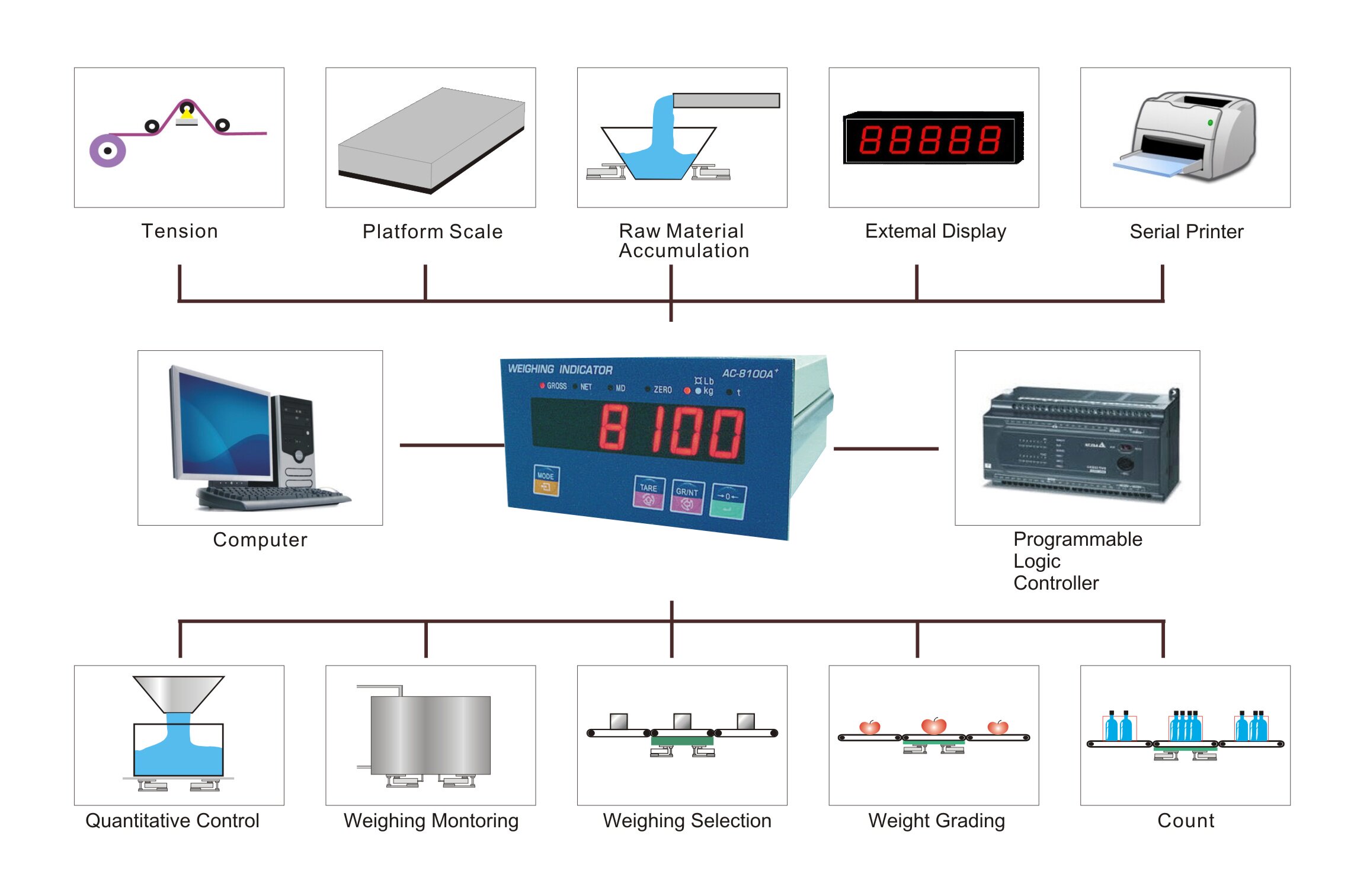

Used in platform scales for general industrial and commercial purposes, various packaging machines, canning machines, checkweighers, truck scales or material testing equipment, can also be used for crane scales.
Contains 4 points of control output and 4 points of input (can be judged by negative value).
The display update rate can reach 50 times per second.
Can be used with all resistance strain force and scale load cells.
Operation is controlled by a microprocessor.
With the fault detection function, customers can quickly find fault points and reduce system downtime.
Parameter backup function, after the customer adjusts the parameters, save the parameters, in case the user messes up the parameters in the future, they can be directly called out for use.
The analog quantity customization function improves the output accuracy of the analog quantity and solves the problem that the analog quantity cannot be output when the weight is negative.
The optional accessories are abundant, which reduces the purchase cost of customers.

Function	illustrate
power supply	AC 85V ~ 265V, 50/60Hz, about 8W DC 18V ~ 36V, about 8W (optional)
Inductor excitation voltage	DC10V±5% current 150mA, up to four 350Ω sensors can be connected
small sensitivity	0.25μV/d
Zero adjustment range	-30.5mV ~ +30.5mV
Measuring voltage range	-30.5mV ~ +30.5mV
temperature range	≤ (0.0008% of reading+0.3d )/℃
range stability	8ppm/k of reading
nonlinear error	≤ 0.005%FS
internal resolution	520,000
display accuracy	1/50,000
Sampling speed	200 times/sec
Sampling method	Delta-Sigma
display element	Six-digit 0.56-inch, red seven-section code high-brightness LED display
LED display	Gross, Net, Stable, Zeroed, Kg/lb, Ton
button	MODE mode, TRAE tare/increment, GR/NT gross weight/net weight, ZERO zero point
Adapt to the environment	Temperature: -10°C ~ +45°C
	Humidity: 20% ~ 80%
weight	About 0.65kg

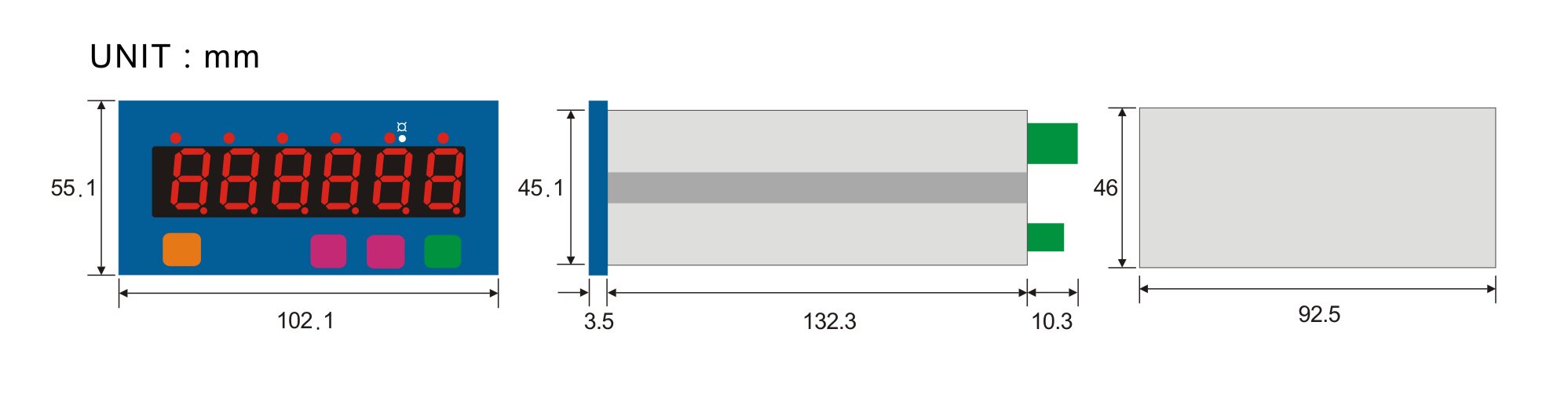

Panel cutout size	92.5(W)×46(H)mm
