Cảm biến độ rung HZD-B-8B integrated vibration transmitter

2 , the scope of application:

 The integrated chassis vibration transmitter produced by Zhengzhou Hangke Instrument Co., Ltd. is widely used in blowers, centrifuges, compressors, steam turbines, water pumps, motors, fans, large pumps, etc. in electric power, steel, petrochemical, coal mining and other industries . Rotating machinery such as turbochargers and other equipment for vibration measurement. The amount of vibration during operation of the equipment is an important indicator of whether the equipment is operating normally.

3 , technical indicators:

1 . Measurement range: Frequency: 10 to 300 Hz
       Amplitude: 0 to 200 um 0 to 500 um 0 to 800 um (peak-to-peak)
       Intensity: 0 to 20 mm/s 0 to 25 mm/s 0 to 50 mm/s (true RMS)

2 . Measurement accuracy: ±0.5, linear error ≤1%FS
3. Measurement method: vertical or horizontal
4. Output signal: current output: 4 ~ 20mA (load ≤ 1KΩ)
5. Ambient temperature: -10 ~ 65 °C (relative humidity ≤ 85%)
6. Power supply voltage: DC24V (power consumption ≤ 3W)
7. Dimensions: 35 × 75 (mm)
8. Fixed screw hole: M10 × 1.5 × 10mm

9.  Housing material: stainless steel

10. Weight: about 350g

4 , product size

       Integrated vibration transmitter product map

5. Wiring method:

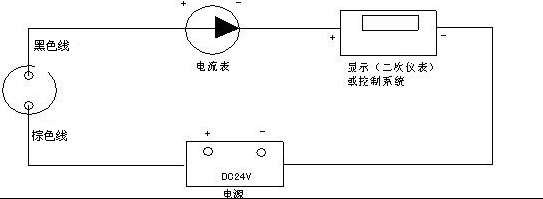

           Integrated vibration transmitter wiring diagram

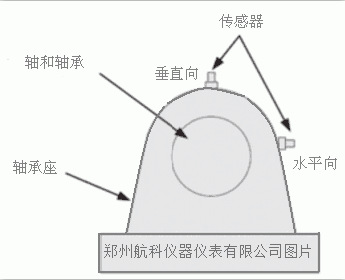

 6. Installation diagram:
