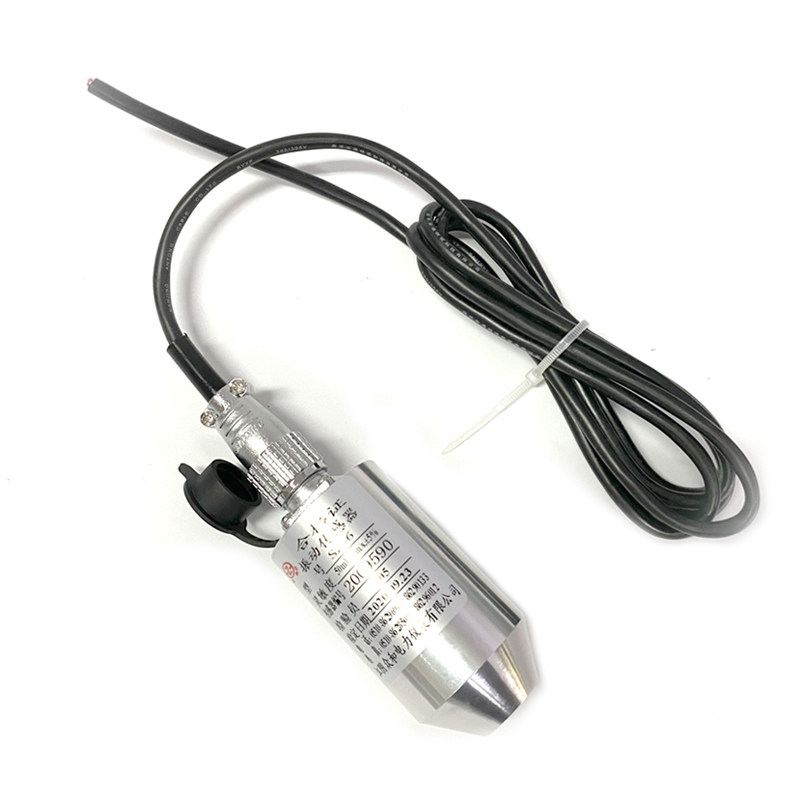

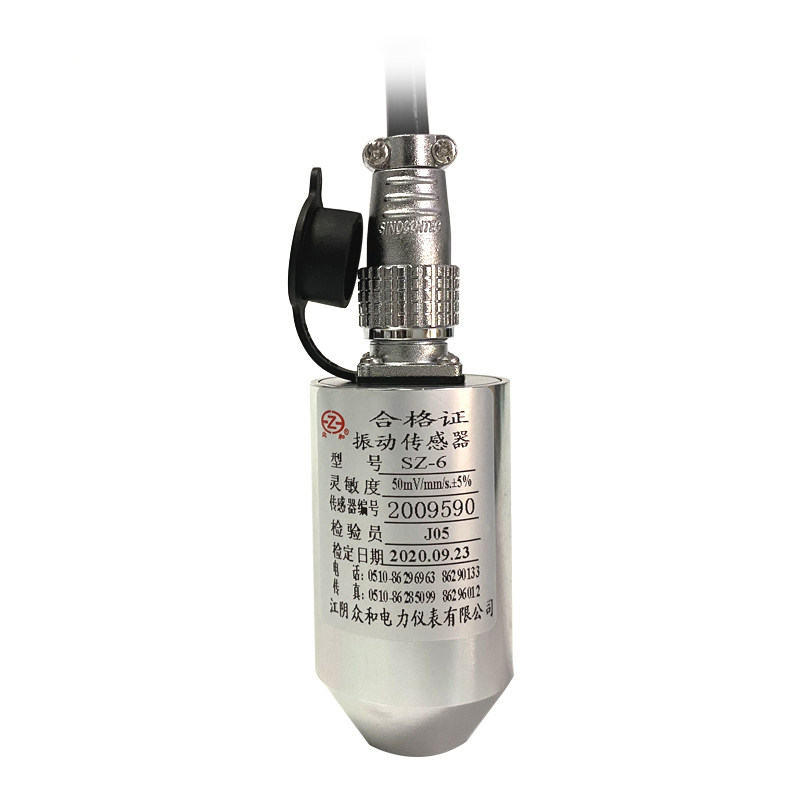

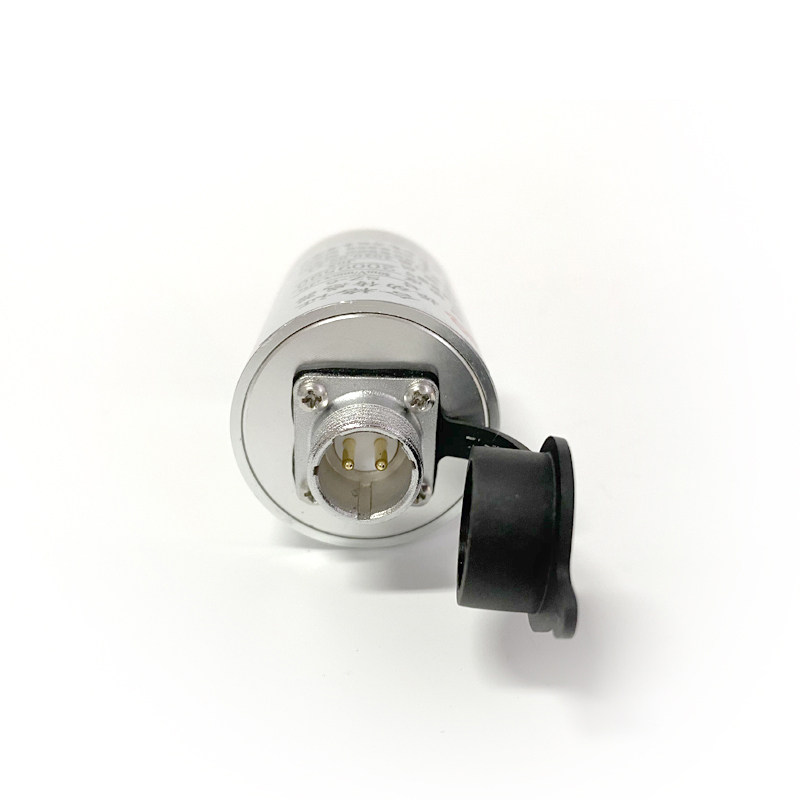

Cảm biến đo độ rung SZ-6 SZ-6A SZ-6G, vibration sensor SZ-6 SZ-6A SZ-6G

1. Introduction:

      The sz-6 vibration speed sensor (vibration probe) is mainly installed on the bearing covers of various rotating mechanical devices (such as steam turbines, compressors, fans and pumps, etc.). It is an electromagnetic sensor that outputs voltage by cutting magnetic lines of force by a moving coil, so it does not need to supply power when working, and is easy to install. Installation position: Vertically or horizontally installed on the measured vibration point, the bottom of the sensor is fixed with M10×1.5 screws.

       The sz-6 vibration speed sensor (vibration probe) is connected to the DK580A series vibration monitoring and protection device, which can measure the bearing vibration of various rotating machinery, and can detect the failure of various rotating machinery early, output standard 4-20mA current signal, and send it to PLC , DCS and DEH systems, etc.

2. Electrical indicators:

Sensitivity: 20mV/mm/s, 30mV/mm/s, 40mV/mm/s, 50mV/mm/s (optional)

Frequency response: 10 to 1000 Hz

Natural frequency: 10Hz

Measurable amplitude: 2mm (P-P)

Acceleration: 10g

3. Physical indicators:

Dimensions: 35×80mm

Weight: about 350g

Measuring direction: vertical or horizontal

4. Environmental indicators:

Temperature: -10℃ to +100℃,

Relative humidity ≤90%
