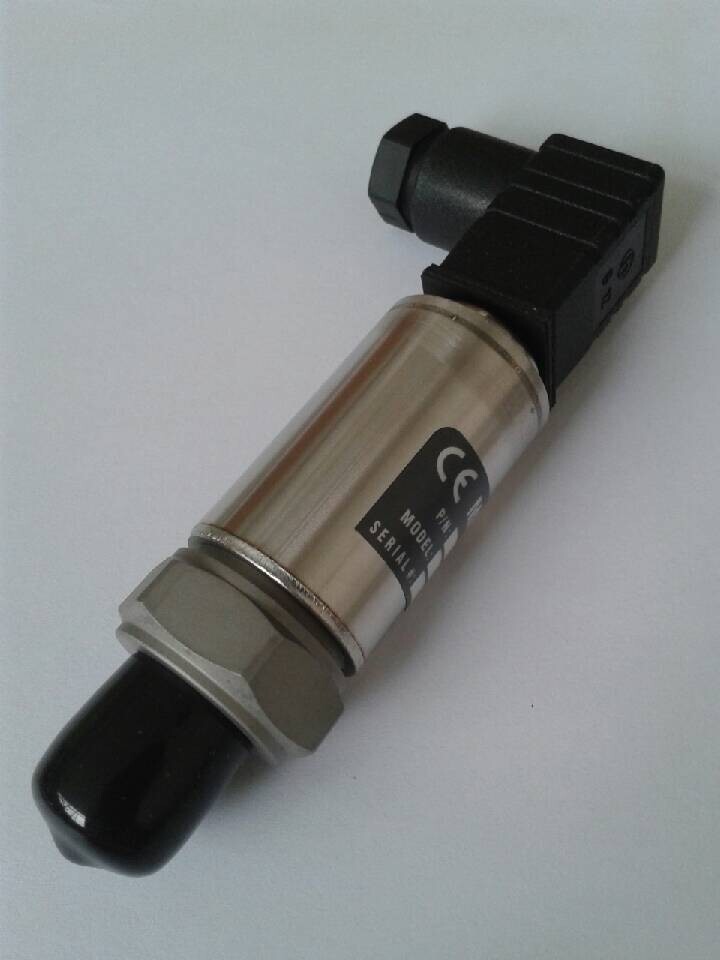

Cảm biến đo áp suất MEAS M5256-000005-250BG

Features:

1.      Low-cost OEM applications

2.      100% no leakage

3.      Stainless steel single-piece integrated structure

4.      Electrical connection: cable, Packard, Bendix, Din

5.      Overload pressure: 2 times the rated pressure

6.      Pressure range (Psi): 0-25,50,75,100,250,500,1000,2500,5000,10000,26100

7.      Output: 0-10mV/V (constant voltage and constant current), 0.5V-4.5V (ratio output), 1V-5V (regulated output) and 4-20mA (loop output)

8.      High precision: 0.25%

9.      Wide operating temperature range: compensation (-20 ℃~85℃ ), work (-40 ℃~125℃ )

typical application:

1.      Pumps and compressors

2.      Hydraulic/pneumatic system

3.      Automotive test system

4.      Energy and water treatment system

5.      Pressure gauge

6.      Refrigeration system

7.      Agricultural Machinery

8.      Spraying machine

Typical applications :  industrial process control, HVAC systems, refrigeration systems, automatic inspection systems, construction machinery, pumps and compressors, hydraulic/pneumatic systems, agricultural equipment, energy management

Industry :  Engines and motor vehicles, medical, industrial control

Substitute :

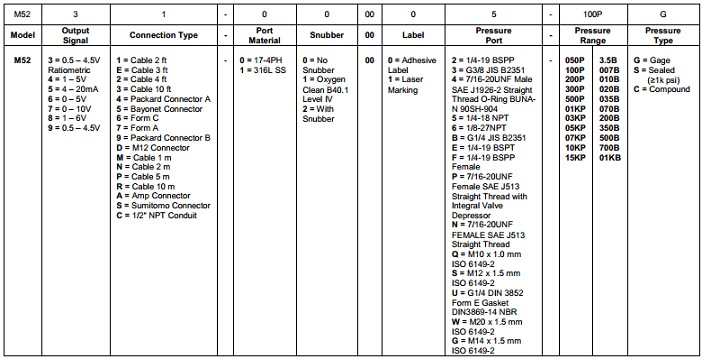

Product specification :  M5200

Product description : The  M5200 pressure sensor is one of the MEAS Microfused? series products. It adopts a modular design to meet the diverse configuration needs of users and establish a new model of performance-price ratio for demanding commercial and industrial applications. M5200 series products are suitable for liquid and gas pressure measurement, even including sewage, steam and corrosive liquids and other media. The pressure chamber of the sensor is made of 17-4PH or 316L stainless steel with a single-piece integrated structure. Because there is no O-ring, no weld, and no direct contact with the measuring medium, the stability and durability of the product are very good. M5200 complies with the latest heavy industry CE standards, including surge protection, reverse polarity protection at the input of the circuit, and short-circuit protection at the output. M5200 is suitable for various OEM applications from small batch to large batch. At the same time, MEAS can also be customized according to customer needs.

Features :

· Heavy industry CE certification

· 10 V/m EMI electromagnetic interference protection

· Input terminal reverse polarity protection

· Output short circuit protection

· Accuracy: ±0.25%

· Total error: ±1.0%

· Compact product structure

· Working temperature: -40°C ~ +125°C

· Waterproof design
