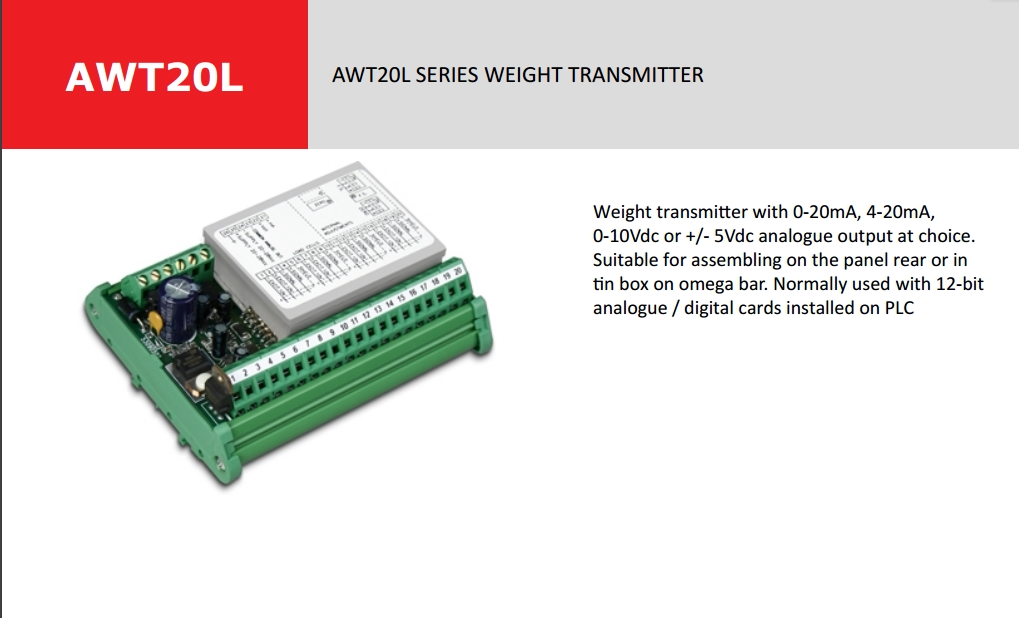

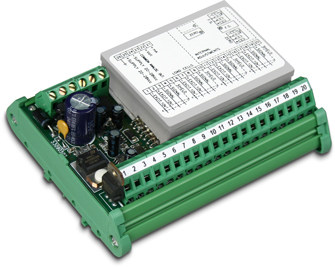

Bộ điều khiển cân, hiển thị cân DINIARGEO AWT20L weight transmission amplifier

This weight transmitter is available in two different models: 0-20mA, 4-20mA, 0-10Vdc and +/- 5Vdc analog output, which is suitable for DIN-rail installation, and 12-bit A/D chip integrated in PLC on the motherboard.

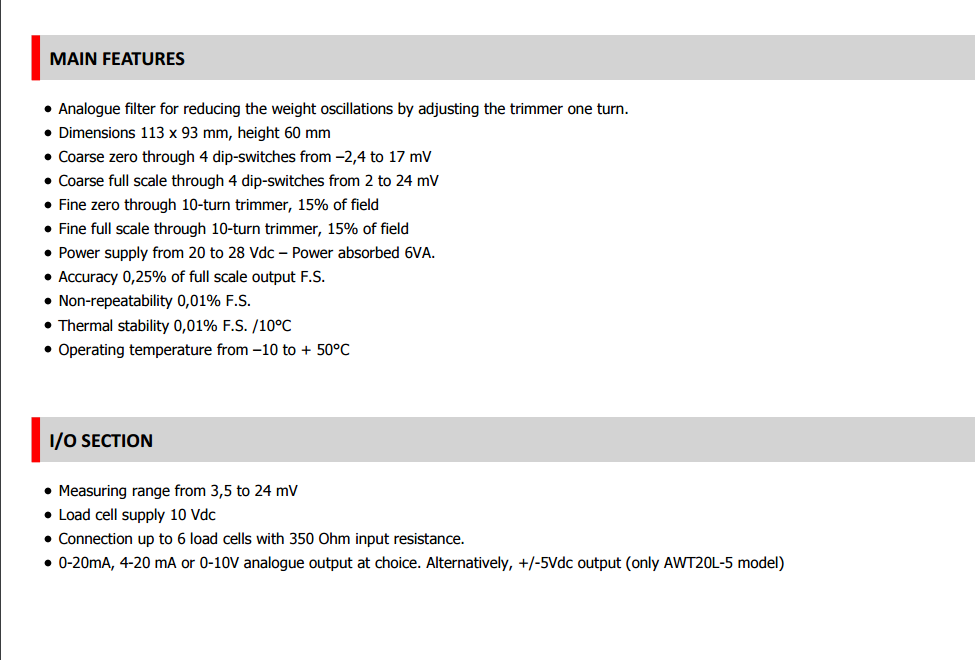

The amplitude variation of the weight can be reduced by adjusting the potentiometer on the analog filter.
Dimensions: 113 x 93mm, Height: 60mm
The zero point can be coarsely adjusted using the 4 adjustment switches (-2.4 to 17mV) on the motherboard.
Full load can be coarsely adjusted using the other 4 adjustment switches (2 to 24mV) on the main board.
Adjust the potentiometer on the fine-tuning zero point to fine-tune the zero point.
Adjust the potentiometer on the fine full load to fine tune the full load.
Supply: 20 to 28Vdc, Power: 6VA
Accuracy: 0.25% of full load Output
Repeatability: 0.01% of
full load Thermal stability: 0.01% of full load/10°C
Operating temperature: -10 to +50°C

Measuring range from 3.5 to 24mV
Sensor voltage: 10Vdc
can connect up to 6 sensors with input resistance of
350Ω 0-20mA, 4-20mA, 0-10V or +/-5Vdc (AWT20L5 model only available) Analog output
