Mô đun truyền thông HI-TOP EtherNet/IP to CC-Link gateway bridge HT3S-EIS-CCS supports PLC protocol

Technical Parameters

EtherNet/IP technical parameters

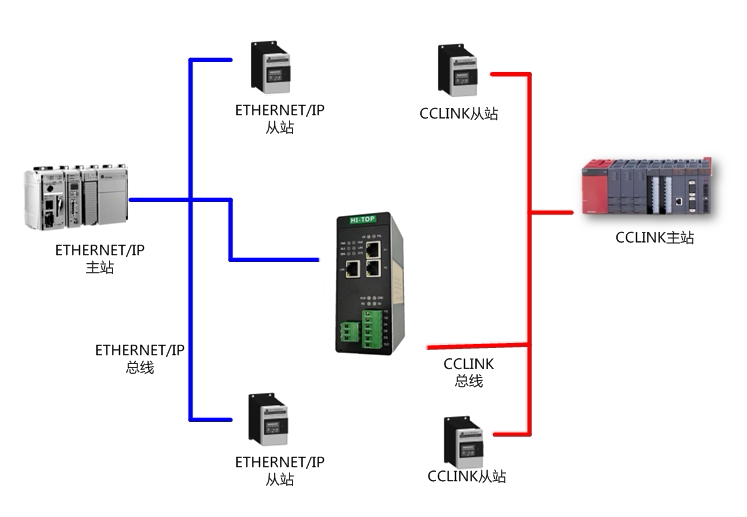

● As a slave station of the EtherNet/IP network, the gateway can connect to PLCs of AB (Rockwell), Omron, Keyence and other brands.
● Ethernet 10/100M adaptive, with IP address conflict detection function.
● Supports ODVA standard EtherNet/IP communication protocol.
● Number of input and output bytes: The maximum number of input bytes is 490 Bytes, and the maximum number of output bytes is 490 Bytes.

CC-Link technical parameters
● The CC-Link interface of the gateway works as a slave station.
● The gateway supports CC-Link Ver.1.
● The gateway supports a maximum input and output of 48 bytes each.
● Baud rate support: 156K, 625K, 2.5M, 5M, 10M optional.
● The gateway operates as a remote device station.

Electrical parameters
◆ Power supply: DC 24V/200mA (18V~30V available), it is recommended to connect the protective ground PE during use
◆ Working environment: -40~85℃, humidity ≤95%
◆ Overall dimensions: 50mm (width) × 126mm (height) )×94mm (thickness)
◆ Protection level: IP20
◆ Installation method: 35mm guide rail
◆ Weight: 500g
