Mô đun truyền thông HI-TOP Profinet to EtherCAT gateway HT3S-PNS-ECS supports robot conversion to Siemens PLC

Technical indicators

ETHERCAT technical parameters

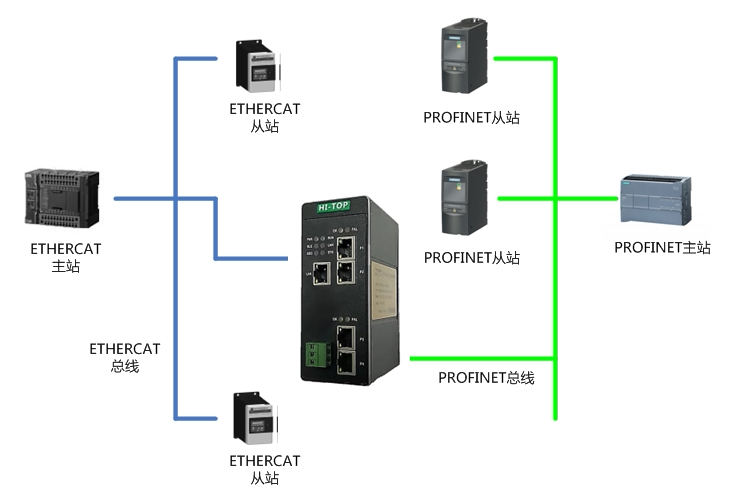

1) As a slave station of the ETHERCAT network, the gateway can connect to ETHERCAT master station equipment such as Beckhoff PAC, Omron, and Keyence robots.
2) With 2 RJ45 Ethernet interfaces, supports 100BASE-TX MDI/MDIX self-detection, can form a chain network, and supports ring network redundancy.
3) The maximum supported PDO length, inputs and outputs are 256 bytes each. The direction of input and output is the direction of the master station, input is the input of the master station, and output is the output of the master station.

PROFINET technical parameters
1) The gateway serves as the Device device (i.e. slave station) of the PROFINET network, with 2 RJ45 Ethernet interfaces, supports 100BASE-TX, MDI/MDIX self-detection, integrated Ethernet switches, and can form a chain network. Support Ring redundancy.
2) Adapt to PROFINET V2.31 protocol, adopt real-time (RT) communication function, comply with: GB/T 25105-2014 "Industrial Communication Network Fieldbus Specification Type 10: PROFINET IO Specification", IEC 61158-5-10: 2007, IDT .
3) The number of PROFINET input/outputs can be set freely, supported data length: input ≤ 500 bytes, output ≤ 500 bytes, input + output ≤ 1000 bytes.

Electrical parameters

◆ Power supply: DC 24V/200mA (18V~30V available), it is recommended to connect the protective ground PE during use
◆ Working environment: -40~85℃, humidity ≤95%
◆ Overall dimensions: 50mm (width) × 126mm (height) × 94mm (thickness)
◆ Protection level: IP20
◆ Installation method: 35mm guide rail
◆ Weight: 500g
