Mô đun truyền thông HI-TOP DeviceNet to Profinet slave protocol conversion gateway bridge HT3S-PNS-DNS

Technical indicators:

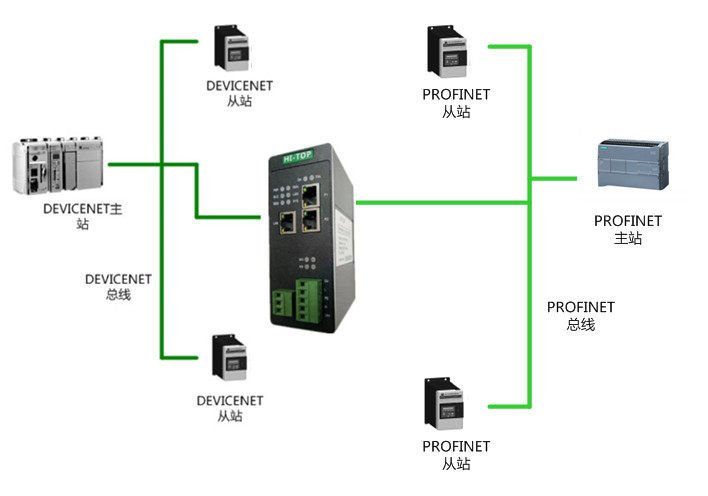

1. The gateway serves as the Device device (i.e. slave) of the PROFINET network, with 2 RJ45 Ethernet interfaces, supports 100BASE-TX, MDI/MDIX self-detection, integrates an Ethernet switch, can form a chain network, and supports ring network redundancy. Remain.
2. Adapt to PROFINETV2.3 protocol, adopt real-time (RT) communication function, comply with: GB/T 25105-2014 "Industrial Communication Network Fieldbus Specification Type 10: PROFINET IO Specification", IEC 61158-5-10: 2007, IDT.
3. The DeviceNet interface is a slave station and supports poll scanning.
4. Supported baud rate: 125K, 250K, 500K.
5. DeviceNet network bus power supply.
6. DeviceNet maximum input and output length: 128 bytes each.
7. DeviceNet station address: 0-63. A network, including the master station, can connect up to 64 nodes
8. Power supply: 24VDC (±5%), maximum power 3.5W.
9. Working environment temperature: -45~85℃, humidity ≤95%.
10. Overall dimensions: 50mm (width) × 126mm (height) × 94mm (thickness).
11. Installation method: 35mm guide rail.
12. Protection level: IP20.
13. Approximate weight: 500g.
