ĐẦU NỐI Bus connector-SUBCON-PLUS-PROFIB/90/SC-2313698 Phoenix

Đăng ngày 12-08-2021 03:02:36 AM - 842 Lượt xem

Mã sản phẩm: SUBCON-PLUS-PROFIB/90/SC-2313698

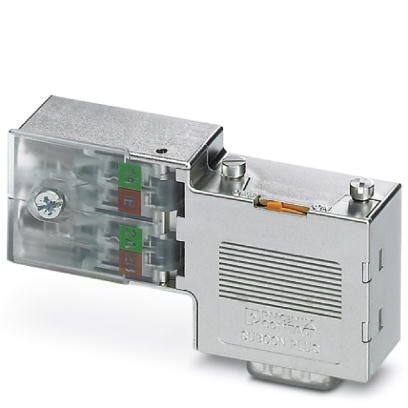

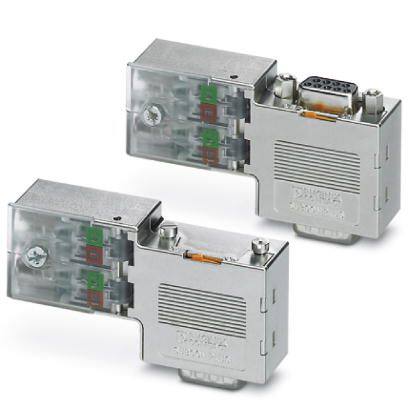

Bus connector-SUBCON-PLUS-PROFIB/90/SC-2313698 Phoenix

Tình trạng sản phẩm:

D-SUB connector, 9 positions, male connector, line entry <90°, bus system: PROFIBUS DP with PG D-SUB female connector, maximum transmission speed 12 Mbps, terminal resistance can be passed through a sliding switch Switch connection, pin assignment: 3, 5, 6, 8; screw terminal

size

Maximum cable diameter	8.4 mm
Minimum cable diameter	7.6 mm
width	16.8 mm
high	34.8 mm
length	72 mm

Environmental conditions

Ambient temperature (operation)	-20 °C ... 75 °C
Ambient temperature (storage/transport)	-25 °C ... 80 °C
altitude	5000 m (For restrictions, please refer to the manufacturer's declaration)
Protection level	IP40

conventional

Rated voltage U _N	5 V
Rated current I _N	100 mA
Bus system	PROFIBUS DP
Signal	PROFIBUS
Plug/unplug cycle	> 200
Test voltage	50 V
SUBCON fastening screws	4-40 UNC
Tightening torque	0.4 Nm
Torque	1.2 Nm (case screw)
Shell material	ABS, metal coating
Pinout	3, 5, 6, 8
MTTF	6706 years (SN 29500 standard type, temperature 25°C, duty ratio 21% (5 days a week, 8 hours a day))
	Years of 1817 (SN 29500 standard type, temperature 40°C, duty cycle 34.25% (5 days a week, 12 hours a day))
	155 years (SN 29500 standard type, temperature 40 °C, duty cycle 100% (7 days a week, 24 hours a day))

Connection data

connect	D-SUB connection
Number of digits	9
Connection method	D-SUB connector
Terminating resistor	390 Ω
	220 Ω
	390 Ω (can be connected externally)
connect	PCB connection
Connection method	Screw connection
Minimum cross section of flexible conductor	0.14 mm2
Maximum cross section of flexible conductor	1 mm2
Minimum cross section of rigid conductor	0.14 mm2
Maximum cross section of rigid conductor	1.5 mm2
Minimum cross section of AWG wire, flexible	26
Maximum cross section of AWG stranded wire, flexible	18
Minimum wire cross section AWG	26
Maximum wire cross section AWG	16
Stripping length	5 mm
Tightening torque	0.4 Nm
connect	Programming connection
Number of digits	9
Connection method	D-SUB socket

Standards and specifications

No substance affecting the coating	Comply with P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Connection meets standards	CUL
ATEX	8 5 II 3 G Ex nA IIC T4 Gc X
Toxic gas detection	ISA-S71.04-1985 G3 severity level group A

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmental protection use period = 50
	For more details on hazardous substances, please refer to the "Manufacturer's Declaration" in the "Download Area"
