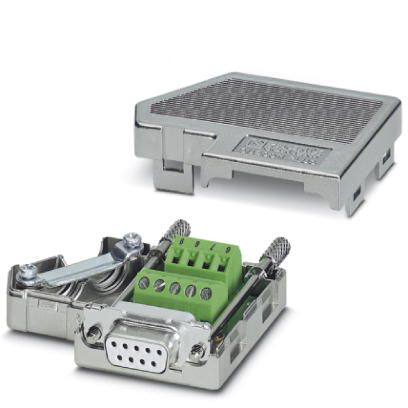

Đầu nối cáp Phoenix D-SUB bus connector-SUBCON-PLUS 9/F-2744241

  • Đăng ngày 12-08-2021 03:19:18 AM - 436 Lượt xem
  • Mã sản phẩm: SUBCON-PLUS 9/F-2744241
  • Phoenix D-SUB bus connector-SUBCON-PLUS 9/F-2744241

    Tình trạng sản phẩm:


    Phoenix D-SUB-Busstecker-SUBCON-PLUS 9/F-2744241







    size

    Maximum cable diameter 10 mm
    Minimum cable diameter 6 mm
    width 16 mm
    high 44 mm
    length









    Environmental conditions

    Ambient temperature (operation) -20 °C ... 75 °C
    Ambient temperature (storage/transport) -25 °C ... 80 °C
    altitude 5000 m (For restrictions, please refer to the manufacturer's declaration)
    Protection level IP20







    conventional

    Rated voltage U N 50 V
    Rated current I N 100 mA
    Bus system RS-485
    Signal RS-485
    Plug/unplug cycle > 200
    SUBCON fastening screws 4-40 UNC
    Tightening torque 0.4 Nm
    Shell material ABS, metal coating
    Pinout All connectors 1:1 connection
    MTTF 6706 years (SN 29500 standard type, temperature 25°C, duty ratio 21% (5 days a week, 8 hours a day))
      Years of 1817 (SN 29500 standard type, temperature 40°C, duty cycle 34.25% (5 days a week, 12 hours a day))
      155 years (SN 29500 standard type, temperature 40 °C, duty cycle 100% (7 days a week, 24 hours a day))





    Connection data

    connect D-SUB connection
    Number of digits 9
    Connection method D-SUB socket
    Tightening torque 0.4 Nm
    connect PCB connection
    Connection method Screw connection
    Minimum cross section of flexible conductor 0.14 mm²
    Maximum cross section of flexible conductor 1 mm²
    Minimum cross section of rigid conductor 0.14 mm²
    Maximum cross section of rigid conductor 1.5 mm²
    Minimum cross section of AWG wire, flexible 26
    Maximum cross section of AWG stranded wire, flexible 18
    Minimum wire cross section AWG 26
    Maximum wire cross section AWG 16
    Stripping length 5 mm
    Tightening torque 0.4 Nm
